INCH-POUND
MIL-PRF-27/347C
13 July 2012
SUPERSEDING
MIL-PRF-27/347B
17 January 1986
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 200 VOLTAMPERES, 3-PHASE
This specification is approved for use by all Departments
and agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall
consist of this document and the latest issue of specification MIL-PRF-27.
(For dash numbers 01 through 07)
(For dash numbers 08 through 21)
Primary (For dash nos. 01 thru 07)
SECONDARY
WYE, 115 V to Com 1,2,3 line 4 Com
WYE, L Com Connect 5-8-10, Load 5-8, 7-8, 9-8
WYE, 200 V L-L 1,2,3
DELTA, L-L Connect 6-7, 8-9 5-10, Load 5,7,9
WYE, L-L Connect 6-10, 8-10, Load 5,7,9
PRIMARY (For dash nos. 08 thru 14)
Delta, 115 V L-L 1,2,3
PRIMARY (For dash nos. 15 thru 21)
Delta, 200 V L-L 1,2,3
CIRCUIT DIAGRAMS

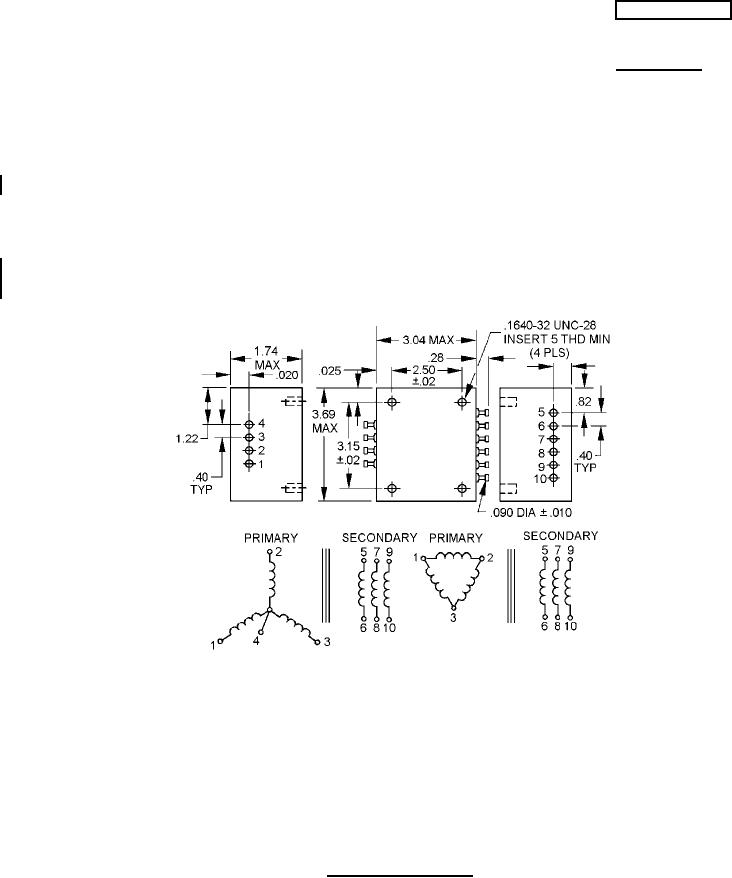

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5950
