INCH-POUND
MIL-PRF-27/350E
25 July 2008
SUPERSEDING
MIL-PRF-27/350D
22 January 1992
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 15 VOLTAMPERES, 400 HZ
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this
document and the latest issue of specification MIL-PRF-27.
INCHES
MM
.063
1.60
.138
3.51
.15
3.8
.23
5.8
.95
24.1
1.62
41.2
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information.
3. Dimensional tolerance shall be ±.03 (0.8 mm) unless otherwise specified.
4. Marking shall be on the top case.
5. Terminals shall be identified by numbers 1 through 5 marked on the top of case above each
terminal.
6. Secondary electrical values shall be marked as specified in table I, as applicable.
7. The insert shall be 5 full threads minimum.
8. Terminal spacing is .35 ±.03 (8.9 ±0.8 mm).

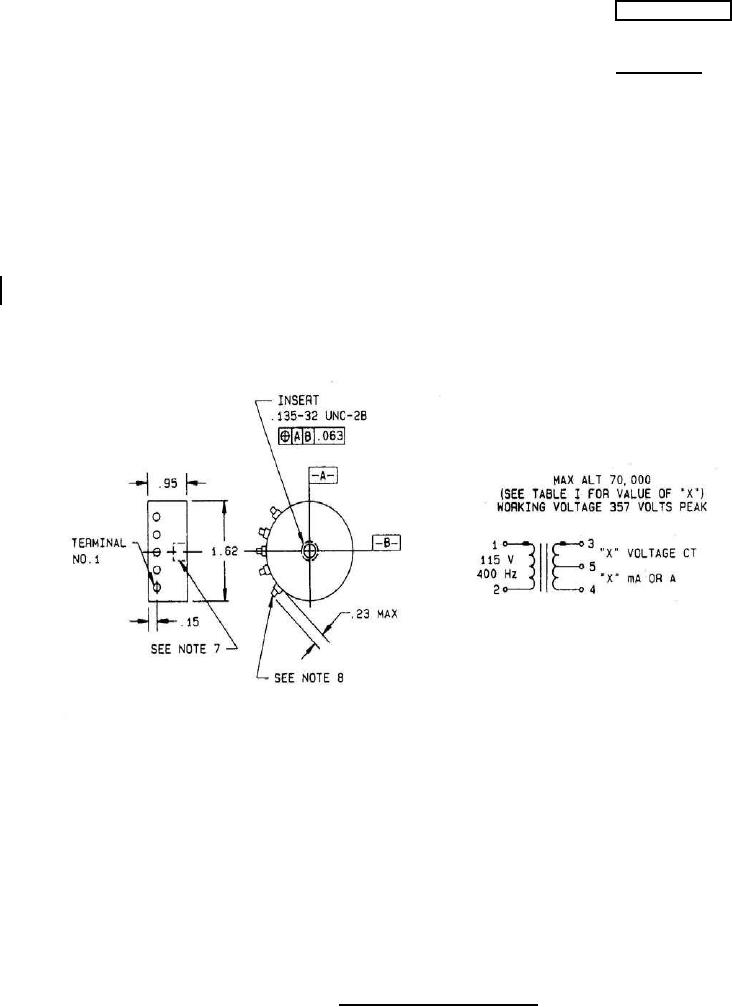

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5950
