INCH-POUND
MIL-T-27/175C
4 May 2012
SUPERSEDING MIL-T-27/1758
20 April 1993
MILITARY SPECIFICATION SHEET
TRANSFORMERS AND INDUCTORS (AUDIO, POWER AND HIGH POWER PULSE) INDUCTORS, AUDIO FREQUENCY, HIGH Q
Inactive for new design after 20 April 1993.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this document and the latest issue of specification MIL-PRF-27.

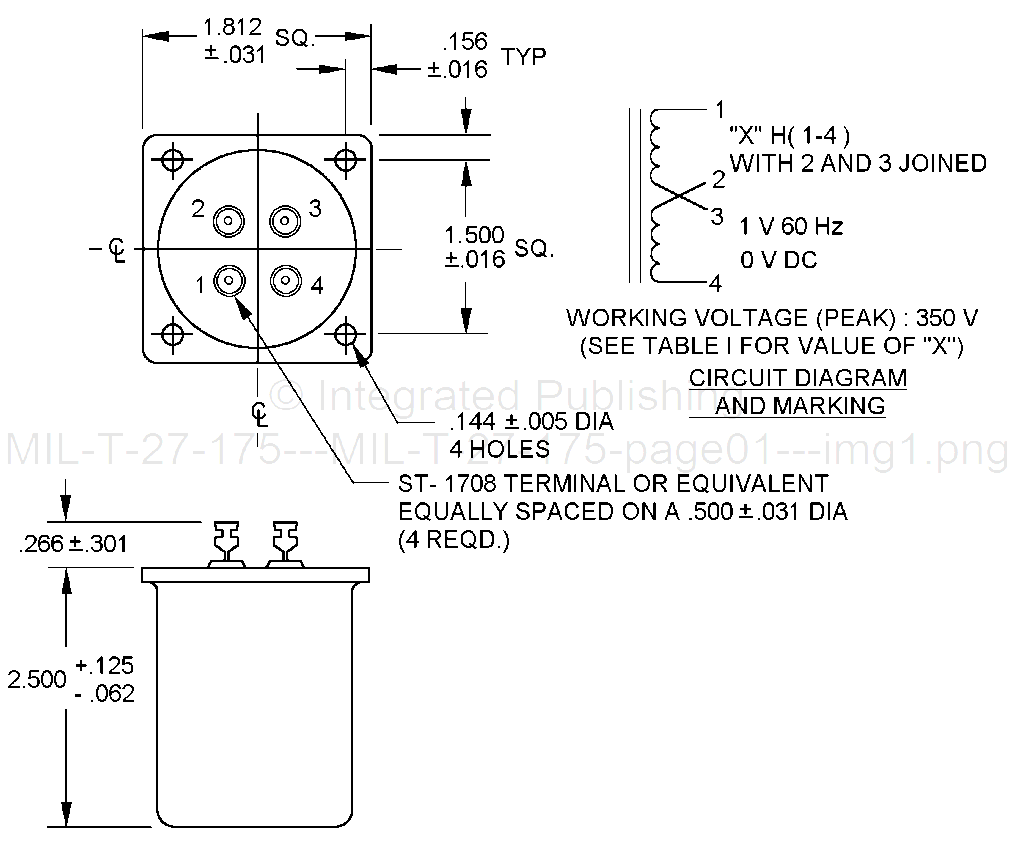

FIGURE 1. Dimensions and configurations.
AMSC N/A FSC 5950
