INCH-POUND
MS75084E
31 August 2007
SUPERSEDING MS75084D
16 February 1995
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, (IRON CORE), TYPES LT10K061 TO LT10K077, INCLUSIVE
Inactive for new design, after 4 September 1985.
For new design, use MIL-PRF-39010/9.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR
Dimensions in inches with metric equivalents (mm) in parentheses
Minimum Maximum
A |
.085 (2.16) |
.105 |
(2.67) |
B |
.240 (6.10) |
.260 |
(6.60) |
C |
1.250 (31.75) |
1.625 |
(41.28) |
D |
.0185 (0.470) |
.0215 |
(0.546) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their leads.
4. Solderable/weldable lead wire, number 24 AWG.

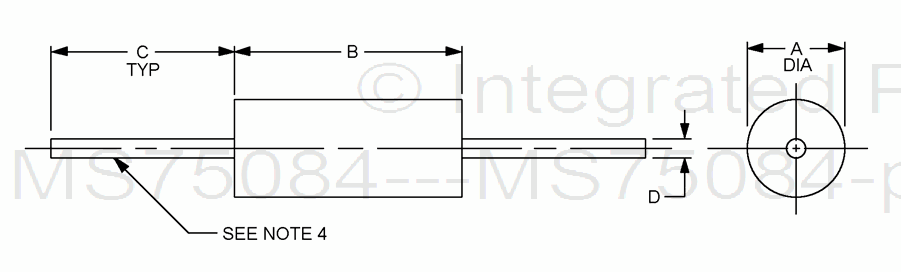

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
