INCH-POUND
MS75088D
31 August 2007
SUPERSEDING MS75088C
16 February 1995
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, MICRO-MINIATURE, MAGNETICALLY SHIELDED, (IRON CORE - IRON SLEEVE), TYPES LT10K203 TO LT10K216, INCLUSIVE
Inactive for new design, after 4 September 1985.
For new design, use MIL-PRF-39010/2.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR
Dimensions in inches with metric equivalents (mm) in parentheses
Minimum Maximum
A |
.152 (3.86) |
.172 |
(4.37) |
B |
.390 (9.91) |
.430 |
(10.92) |
C |
1.250 (31.75) |
1.626 |
(41.30) |
D |
.023 (0.58) |
.027 |
(0.69) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their leads.
4. Solderable/weldable lead wire, number 22 AWG.

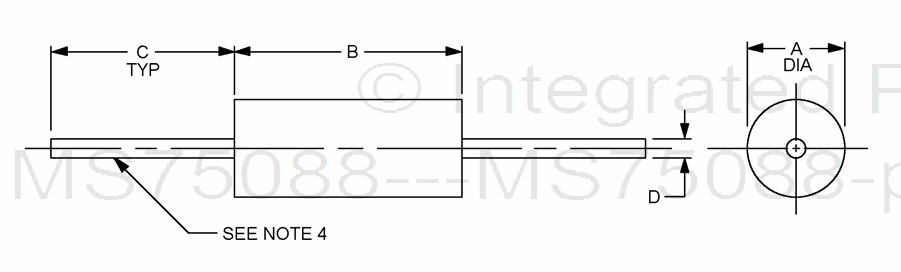

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
