INCH - POUND
MIL-PRF-27/1F
13 July 2012
SUPERSEDING
MIL-PRF-27/1E
23 July 1990
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, AUDIO FREQUENCY
This specification is approved for use by all Departments
and agencies of the Department of Defense.
The complete requirements for procuring the product described herein shall
consist of this document and the latest issue of specification MIL-PRF-27.
Part number M27/1-01 is inactive for new design
after 4 April 1985. For new design use M27/1-02.
Inches
mm
.003
0.08
.005
0.13
.010
0.25
.020
0.51
.025
0.64
.041
1.04
.156
3.98
.490
12.45
.680
17.27
.796
20.22
1.200
30.48
1.332
33.83
1.400
35.56
1.593
40.46
1.695
43.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

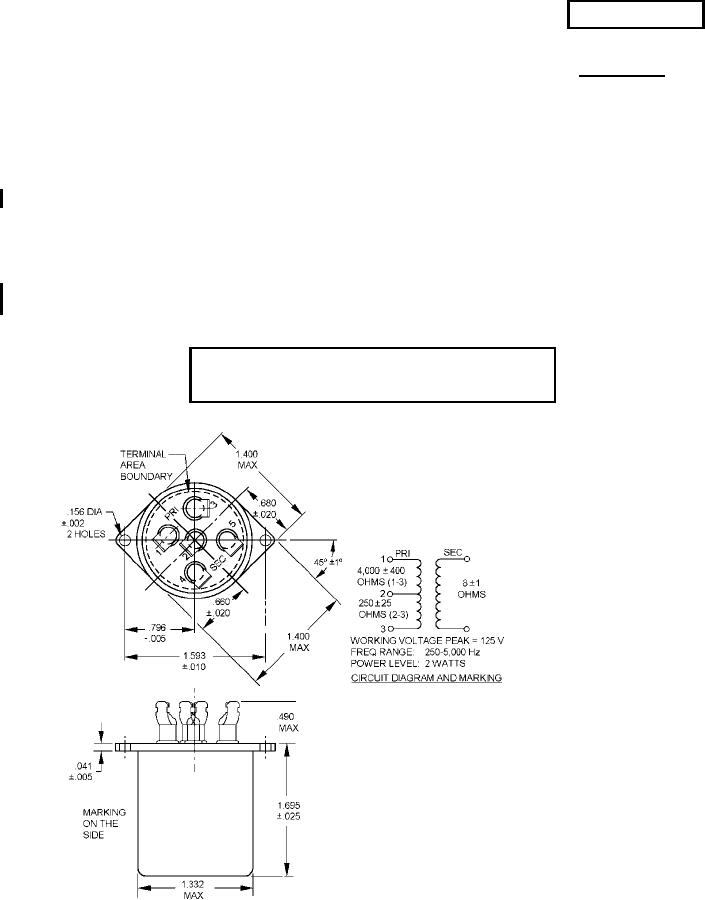

FIGURE 1. Dimensions and configurations.
