INCH-POUND
MIL-PRF-27/111A
29 September 2009
SUPERSEDING
MIL-PRF-27/111
30 July 1976
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS AND INDUCTORS,
(AUDIO, POWER AND HIGH-POWER PULSE)
INDUCTOR, AUDIO
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-27.
.150 DIA.
1.250
.40
± .010
± .050
MAX.
.700
1.860
1.594
1.250
NOM.
MAX.
± .010
± .050
1.390
1
10 mH min.
MAX.
IV
0.4 kHz
DC RES. 0.5 OHM MAX.
2
CIRCUIT DIAGRAM AND MARKING
Inches
mm
0.25
.010
1.27
.050
3.81
.150
10.16
.400
17.78
.700
31.75
1.250
35.31
1.390
NOTES:
40.49
1.594
1. Dimensions are in inches.
47.24
1.860
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.

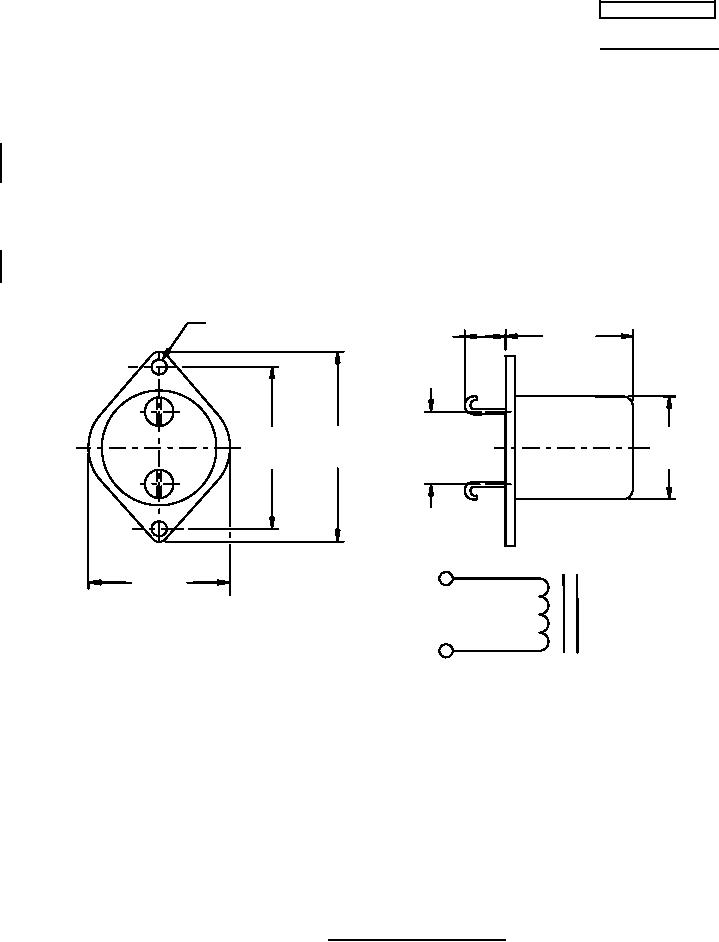

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5950
