INCH-POUND
MIL-PRF-27/164D
22 April 2011
SUPERSEDING
MIL-PRF-27/164C
14 February 1995
PERFORMANCE SPECIFICATION SHEET
TRANSFORMER AND INDUCTORS
(AUDIO, POWER, AND HIGH-POWER PULSE)
INDUCTORS, HIGH Q
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein
shall consist of this specification and MIL-PRF-27.
.563
± .031
1
"X" H
"X" mAdc
1.000
"X" ohms
"X" Q
± .125
WV : 175 V pk
2
.025 DIA
ALTITUDE 75,000 ft. MAX
.344 ± .016
(SEE TABLE I FOR VALUE OF "X"
CIRCUIT DIAGRAM AND MARKING
.438
.203 ± .016
± .031
Inches
mm
.016
0.41
.025
0.64
.031
0.79
.484
.203
5.16
.344
8.74
± .031
.438
11.13
.484
12.29
.563
14.30
1.000
25.40
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.

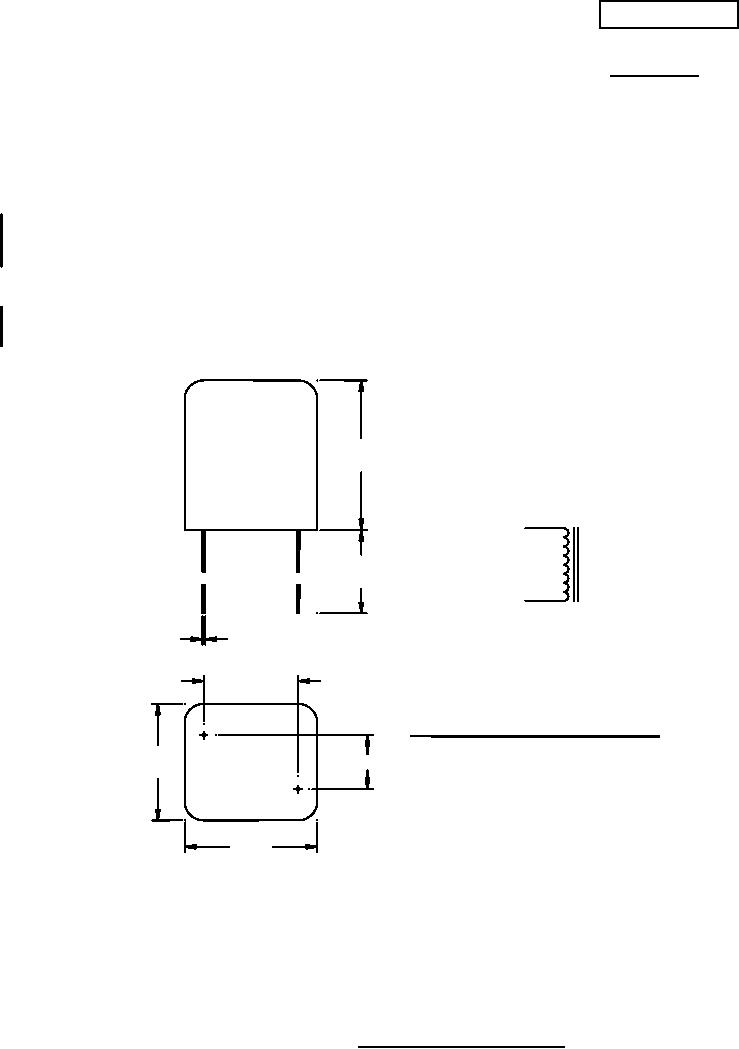

FIGURE 1. Dimensions and configurations.
AMSC
FSC 5950
