MIL-PRF-27/180B
Working Voltage (peak): 535 V

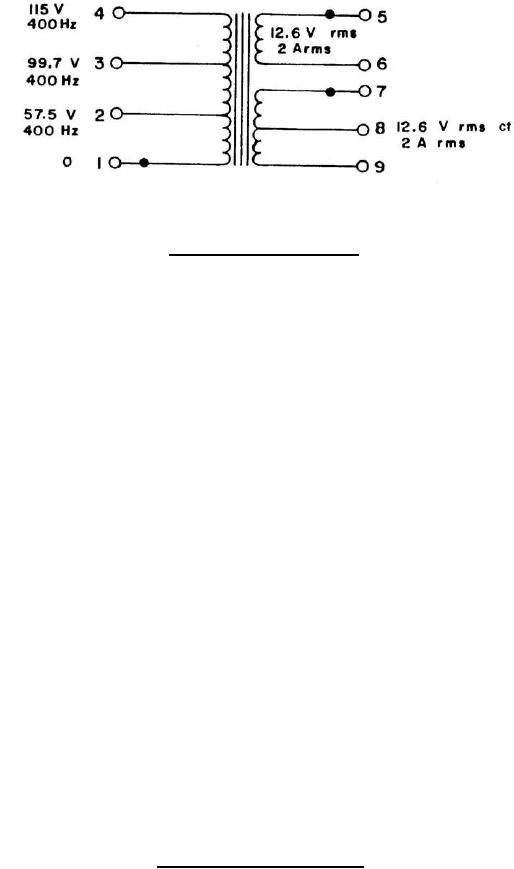

Circuit diagram and marking
Inches
mm
.032
0.81
.062
1.57
.125
3.18
.138
3.51
.188
4.78
.312
7.92
.375
9.52
.437
11.13
.562
14.27
1.438
36.53
1.688
42.88
2.062
52.37
2.312
58.72
3.125
79.38
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.
FIGURE 1. Dimensions and configurations Continued.
