MIL-PRF-27/187D
ALTITUDE = 80,000 FT MAX
Inches
mm
Inches
mm
Inches
mm
.005
0.13
.28
7.1
.875
22.22
.031
0.79
.31
7.9
1.187
30.15
.100
2.54
.37
9.4
1.53
38.9
.164
4.17
.38
9.7
1.562
41.96
.190
4.83
.437
11.10
1.69
42.9
.20
5.1
.593
15.06
2.270
57.69
.251
6.38
.770
19.56
NOTES:
1.Dimensions are in inches.
2.Metric equivalents are given for general information only.
3.Unless otherwise specified, tolerances are ±.010 (0.25 mm) for three place dimensions
and ±.03 (0.8 mm) for two place dimensions.
4.Marking shall be on the top of the case.
5.Stud shoulder shall form an integral part of the threaded stud terminal.

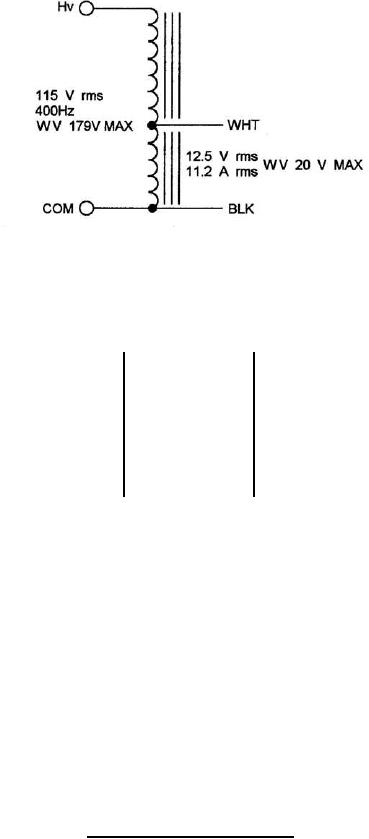

FIGURE 1. Dimensions and configurations - Continued.
2
