INCH-POUND
MIL-PRF-27/205D
28 September 2012
SUPERSEDING
MIL-PRF-27/205C
18 July 2008
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS AND INDUCTORS
(AUDIO, POWER, AND HIGH-POWER PULSE),
INDUCTORS, AUDIO FREQUENCY, HIGH Q
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-27.
INCHES
MM
.031
0.79
.112
2.84
.250
6.35
.266
6.76
.281
7.14
.688
17.48
.875
22.22
32.54
1.281
42.06
1.656
NOTES:
1.Dimensions are in inches.
2.Metric equivalents are given for information only.
3.Marking shall be on the side of the case.
4.Tolerances on all dimensions shall be ±.016 inch (0.41 mm), unless otherwise specified.

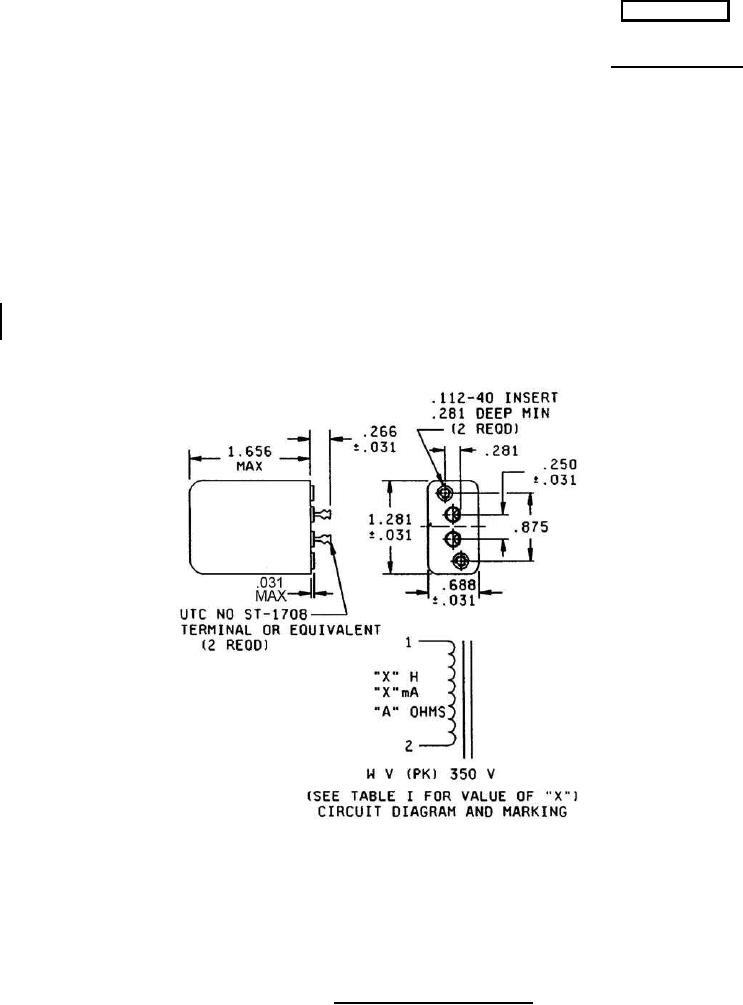

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5950
