INCH-POUND
MIL-PRF-27/29C
28 April 2008
SUPERSEDING
MIL-PRF-27/29B
15 September 1975
PERFORMANCE SPECIFICATION SHEET
TRANSFORMER, AUDIO FREQUENCY
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this
document and the latest issue of specification MIL-PRF-27.
Inches
mm
0.64
.025
0.76
.030
1.52
.060
2.54
.100
5.08
.200
6.35
.250
7.62
.300
10.16
.400
11.43
.450
20.75
.817
WORKING VOLTAGE � 50 VOLTS
22.35
.880
28.96
1.140

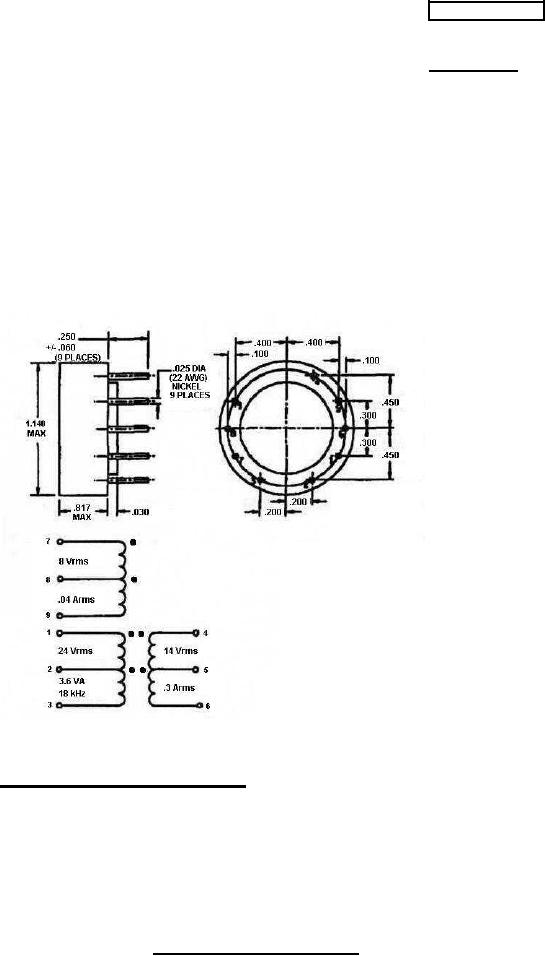

CIRCUIT DIAGRAM AND MARKING
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.
FIGURE 1. Dimensions and configurations
AMSC N/A
FSC 5950
