INCH-POUND
MIL-PRF-27/290C
18 July 2008
SUPERSEDING
MIL-PRF-27/290B
23 April 2003
PERFORMANCE SPECIFICATION SHEET
TRANSFORMER, AUDIO FREQUENCY
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this
document and the latest issue of specification MIL-PRF-27.
INCHES
MM
.016
0.41
.030
0.76
.25
6.4
.344
8.74
.469
11.91
1.50
38.1
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.

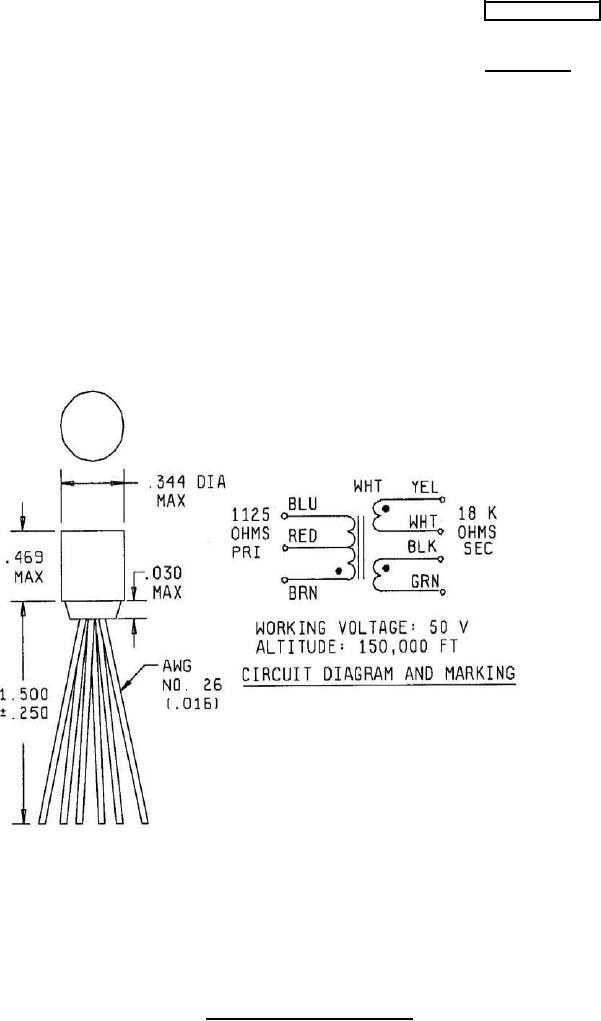

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5950
