INCH-POUND
MIL-PRF-27/349C
13 July 2012
SUPERSEDING
MIL-PRF-27/349B
17 January 1986
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 375 VOLTAMPERES, 3-PHASE
This specification is approved for use by all Departments
and agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall
consist of this document and the latest issue of specification MIL-PRF-27.
(For dash numbers 07 through 18)
(For dash numbers 01 through 06)
SECONDARY
Primary (For dash nos. 01 thru 06)
WYE, L Com Connect 6-8-10, Load 5-6, 7-6, 9-6
WYE, 115 V to Com 1,2,3 line 4 Com
DELTA, L-L Connect 6-7, 8-9 5-10, Load 5,7,9
WYE, 200 V L-L 1,2,3
WYE, L-L Connect 6-10, 8-10, Load 5,7,9
PRIMARY (For dash nos. 07 thru 12)
Delta, 115 V L-L 1,2,3
PRIMARY (For dash nos. 13 thru 18)
Delta, 200 V L-L 1,2,3

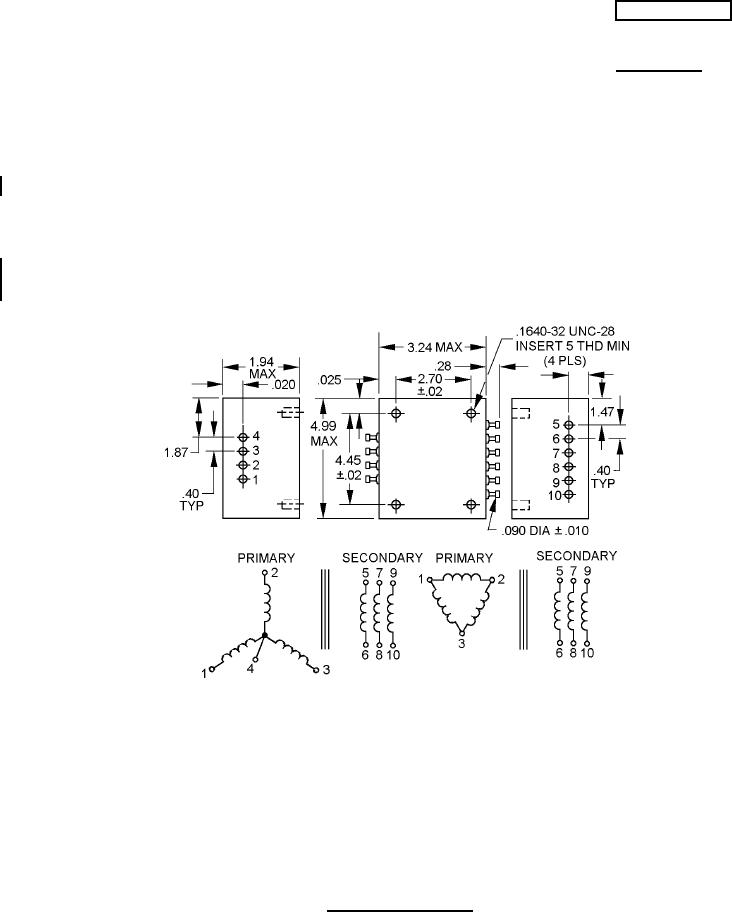

CIRCUIT DIAGRAMS
FIGURE 1. Dimensions and configurations.
