INCH-POUND
MIL-PRF-27/357D
13 July 2012
SUPERSEDING
MIL-PRF-27/357C
5 September 2002
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, AUDIO FREQUENCY, ULTRA-MINIATURE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The complete requirements for acquiring the product described herein shall
consist of this document and the latest issue of specification MIL-PRF-27.
Inches
mm
.010
0.25
.020
0.51
.218
5.54
.25
6.35
.350
8.89
.500
12.70
1.00
25.4
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.
4. Primary and secondary electrical values, specified in table I, shall be marked as applicable.
5. Dots on circuit diagram indicate polarity.

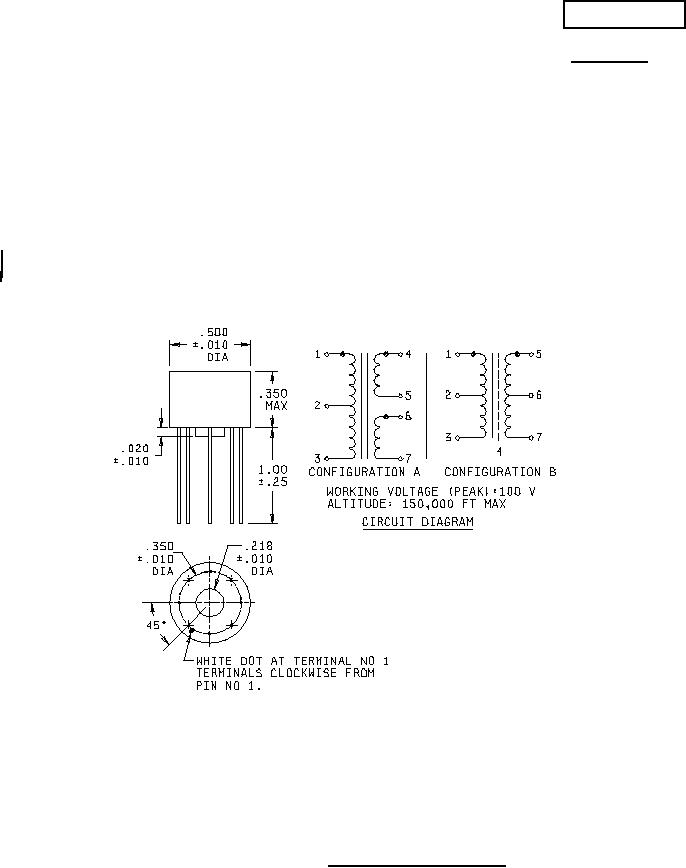

FIGURE 1. Dimensions and configuration.
