INCH-POUND
MIL-PRF-27/364A
21 June 2010
SUPERSEDING
MIL-PRF-27/364
4 December 1986
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 107 VOLTAMPERES, 3-PHASE
This specification is approved for use by all Departments
and agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and the latest issue of MIL-PRF-27.
INCHES
MM
0.25
.010
0.5
.02
2.29
.090
3.505
.1380
5.1
.20
7.1
.28
10.2
.40
10.9
.43
11.4
.45
16.5
.65
21.6
.85
40.4
1.59
58.4
2.30
63.5
2.50
69.6
2.74
74.7
2.94
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the sides of the case. Terminal identification shall be as shown on the figure.
4. Electrical values shall be marked as specified in table I.
5. For series output connect terminals 4 and 5 together. For parallel output connect pins 3 to 4 and
5 to 6.

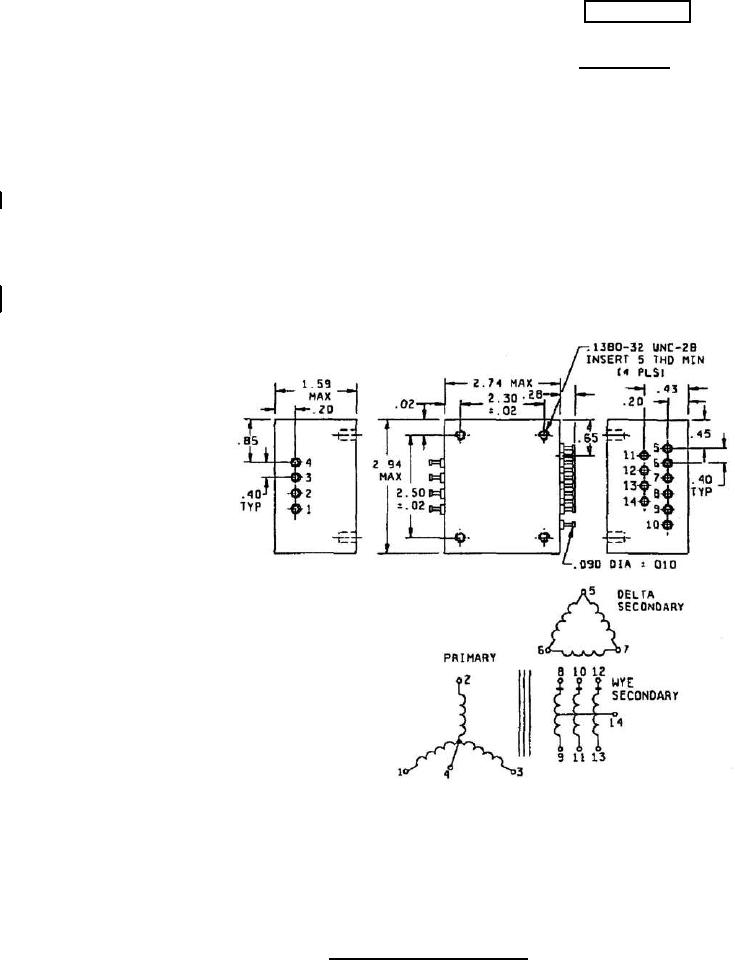

FIGURE 1. Dimensions and configuration.
