INCH-POUND
MIL-PRF-27/54E
28 April 2008
SUPERSEDING
MIL-PRF-27/54D
2 June 2003
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 9.0 VOLT AMPERES, 400 HZ
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-27.
Inches
mm
.031
0.79
.112
2.84
.138
3.51
.234
5.94
.250
6.35
.312
7.92
.344
8.74
.500
12.70
.750
19.05
1.000
25.40
1.062
26.97
1.125
28.59
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerance on terminal position dimensions is ±.015 (0.38 mm).
4. Marking shall be on the side of the case.
5. Terminals are color coded for permanent identification in addition to terminal marking shown.
6. Secondary electrical values shall be marked as specified in table I, as applicable.

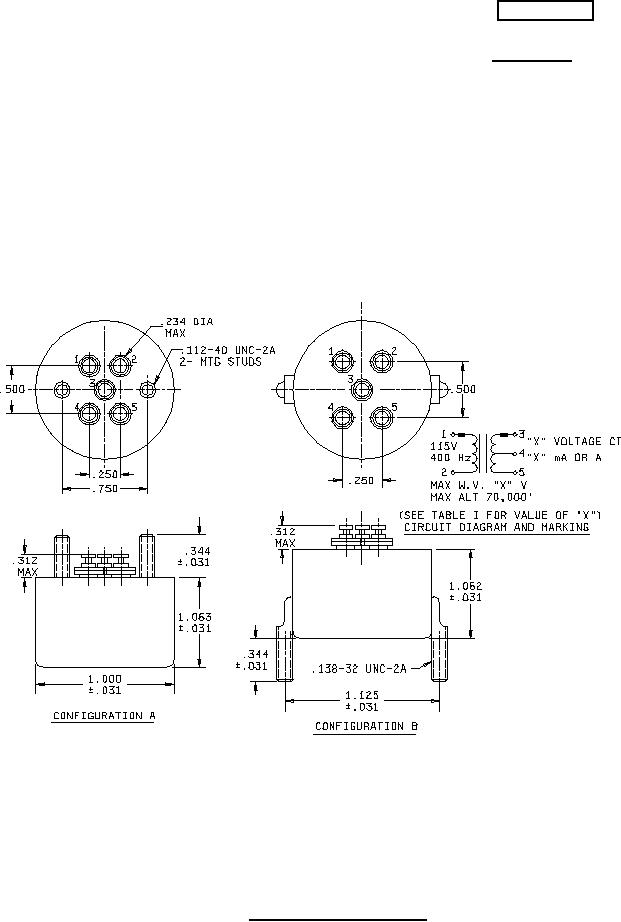

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5950
