MIL-PRF-27/68C
Inches
mm
Inches
mm
.005
0.13
.200
5.08
.020
0.51
.500
12.70
.030
0.76
.600
15.24
.052
1.32
.800
20.32
.062
1.57
.900
22.86
.112
2.84
1.000
25.40
.125
3.18
1.085
27.56
.187
4.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Marking shall be on sides and/or top of case.
5. Electrical values shall be marked as specified in table I, as applicable.

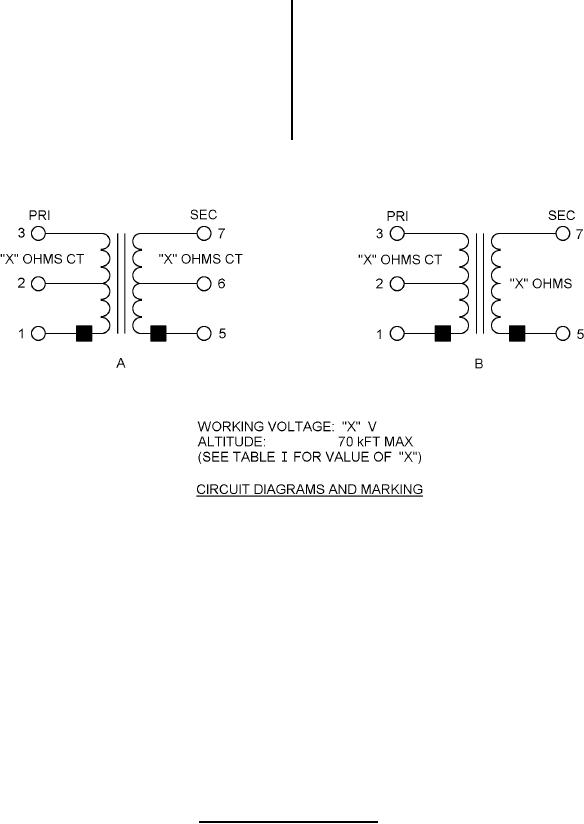

FIGURE 1. Dimensions and configuration Continued.
2
