MIL-PRF-27/70D
Inches
mm
.005
0.13
.020
0.51
.030
0.76
.062
1.57
.125
3.18
.200
5.08
.400
10.16
.500
12.70
.590
14.99
.600
15.24
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.005 (0.13 mm).
4. Marking shall be on sides and/or top of case.
5. Electrical values shall be marked as specified in table I, as applicable.

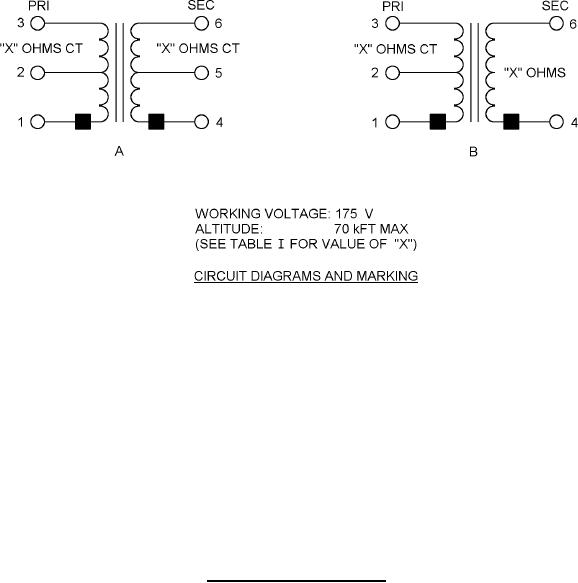

FIGURE 1. Dimensions and configuration Continued.
