MIL-PRF-27/71E
Inches
mm
Inches
mm
.005
0.13
.150
3.81
.030
0.76
.300
7.62
.031
0.79
.460
11.68
.062
1.57
.495
12.57
.125
3.18
.500
12.70
Working voltage: 175 V
Altitude
: 70,000 ft maximum
(See table I for value of "X")

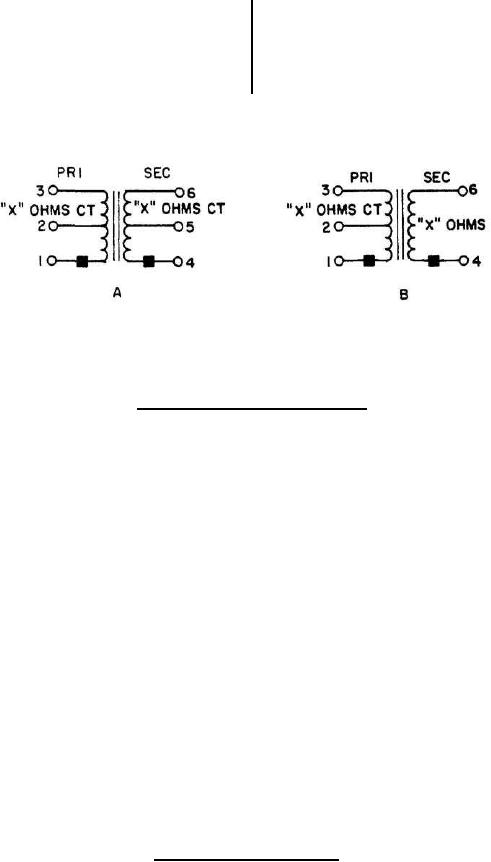

CIRCUIT DIAGRAMS AND MARKING
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Part marking shall be on sides or top of case.
5. Electrical values shall be marked as specified in table I, as applicable.
FIGURE 1. Dimensions and configurations - Continued.
2
