MIL-PRF-27/72C
Inches
mm
Inches
mm
.005
0.13
.262
6.65
.020
0.51
.300
7.62
.030
0.76
.340
8.64
.062
1.57
.415
10.54
.100
2.54
.433
11.00
.125
3.18
.500
12.70
.202
5.13
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.005 (0.13 mm).
4. Marking shall be on sides and/or top of case.
5. Beveled corner shall be 45° and identifies pin no. 1.
6. Electrical values shall be marked as specified in table I, as applicable.

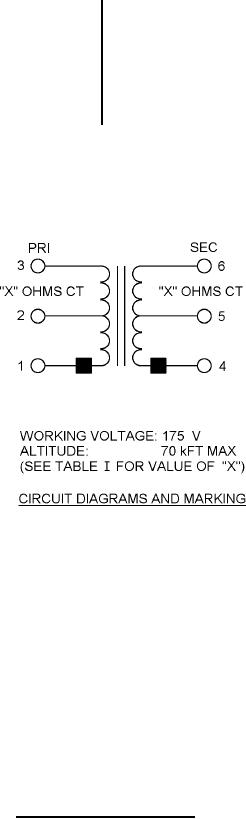

FIGURE 1. Dimensions and configuration Continued.
