MIL-PRF-83446/10C
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

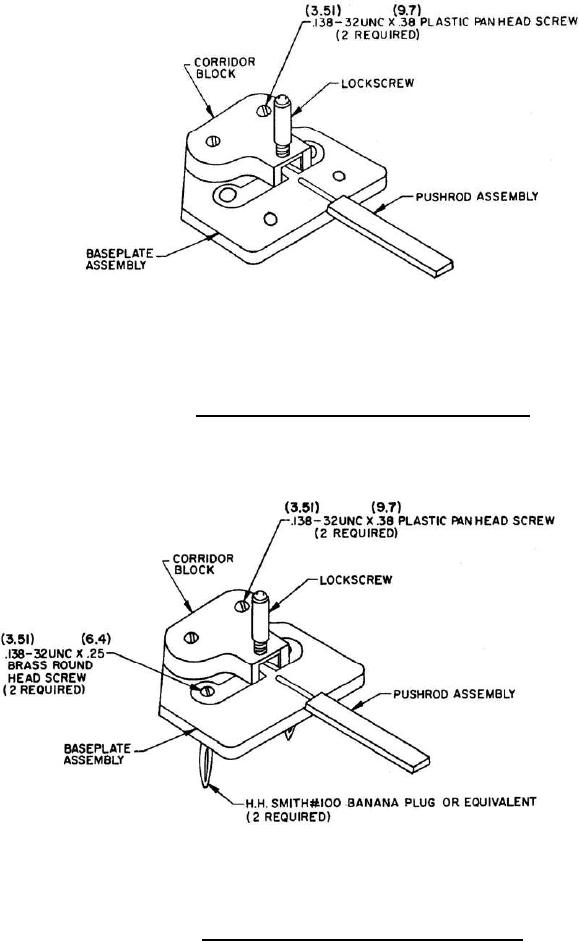

FIGURE 2. Typical chip coil test fixture (TF-250RX-1, or equivalent).
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.
FIGURE 3. Typical chip coil test fixture TF-260Q-1, or equivalent).
