INCH - POUND
MIL-PRF-83446/13C
1 April 2014
SUPERSEDING
MIL-PRF-83446/13B
25 August 2006
PERFORMANCE SPECIFICATION SHEET
COILS, RADIO FREQUENCY, CHIP, FIXED
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-83446.
INCHES
mm
A
.100 ±.005
2.54 ±0.13
B
.100 ±.005
2.54 ±0.13
C
.100 ±.005
2.54 ±0.13
D
.025 ±.005
0.64 ±0.13
E
.015 Minimum
0.38 Minimum
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

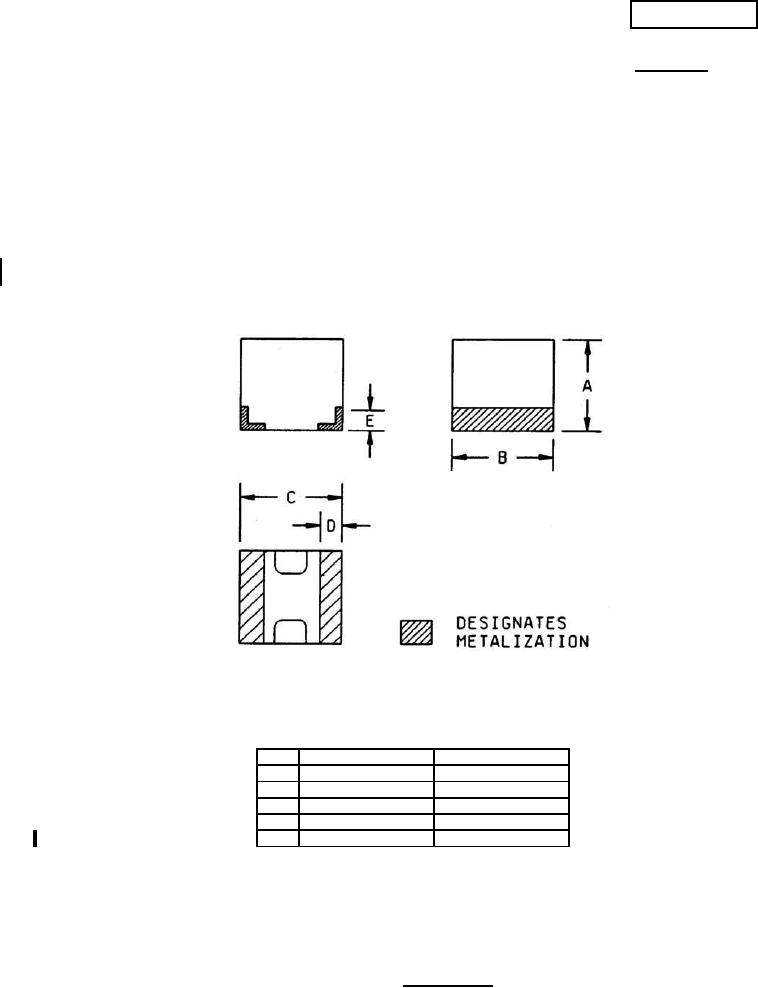

FIGURE 1. Fixed, chip coil.
AMSC N/A
FSC 5950
