MIL-PRF-83446/6F
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

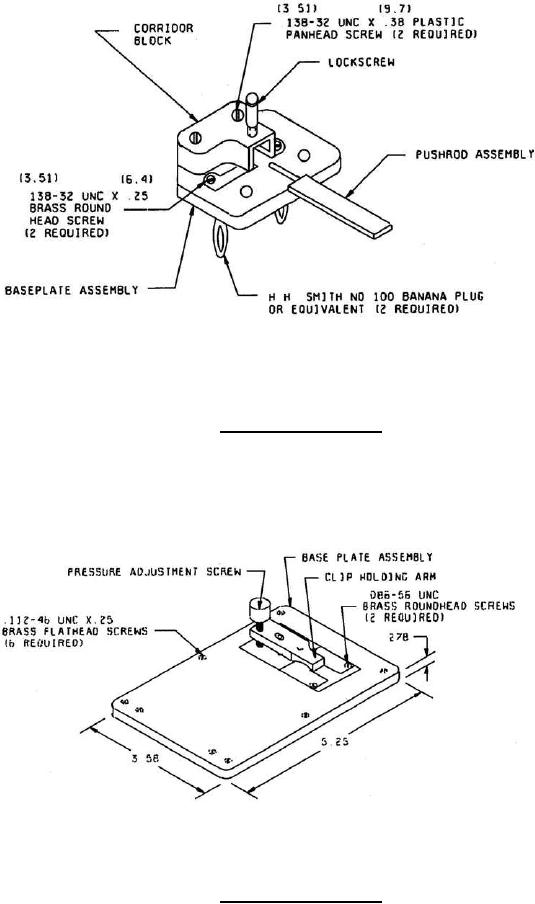

FIGURE 2. Typical chip coil test fixture.
(for dash numbers 01 through 48)
FIGURE 3. Typical chip coil test fixture.
(for dash numbers 49 through 126
6
