INCH-POUND
MIL-T-27/99C
4 May 2012
SUPERSEDING MIL-T-27/998
13 March 1991
MILITARY SPECIFICATION SHEET TRANSFORMER, POWER, STEP-DOWN
Inactive for new design after
13 March 1991
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-27.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerance on terminal angular position is ±0.5°.
4. Marking shall be on the side of the case.

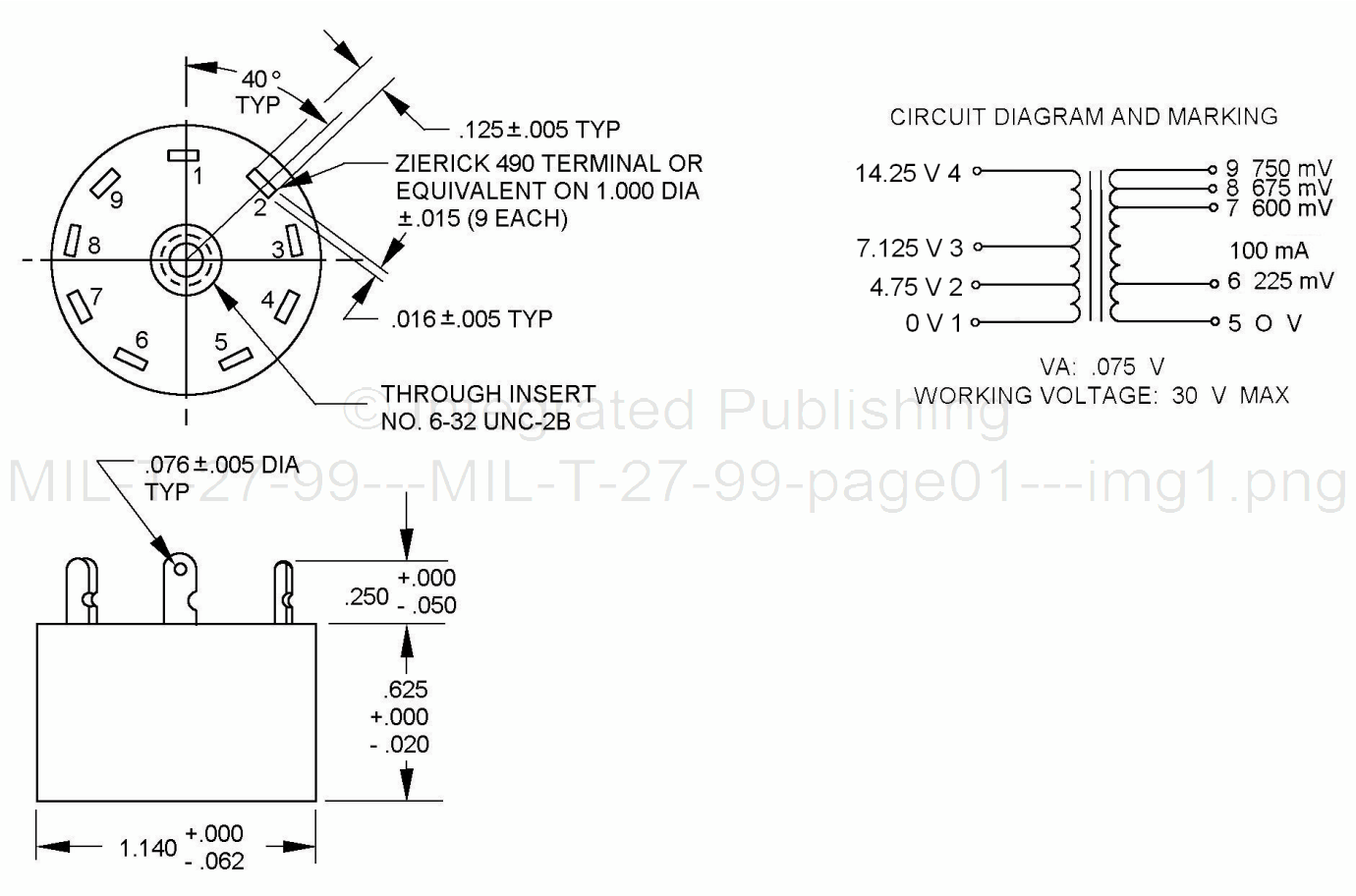

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
