INCH-POUND
MS14049A
29 June 2007
SUPERSEDING MS14049
15 February 1972
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, SUBMINIATURE, (IRON CORE), TYPES LT10K148 TO LT10K152 INCL.
Inactive for new design
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
Ltr |
Dimensions in inches with metric equivalents (mm) in parentheses |
|
Minimum |
Maximum |
|
A B C D |
.365 (9.27) .615 (15.62) 1.250 (31.75) .026 (0.66) |
.385 (9.78) .635 (16.13) 1.625 (41.28) .030 (0.76) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents, in parentheses, are given for general information only.
3. These coils are intended to be mounted by the body.
4. Solderable/weldable lead wire, AWG number 21.

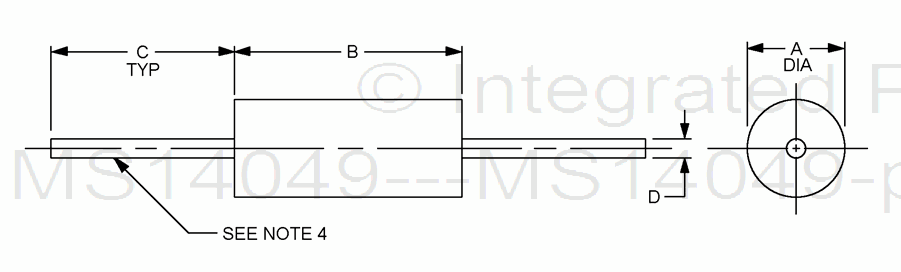

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
