INCH-POUND
MS21388C
24 August 2007
SUPERSEDING MS21388B
28 July 1986
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, SUBMINIATURE, IRON CORE, TYPES LT4K
Inactive for new design after 21 February 2003
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
Ltr |
Dimensions in inches with metric equivalents (mm) in parentheses |
|
Minimum |
Maximum |
|
A B C D |
.230 (4.27) .580 (10.67) 1.300 (33.02) .0265 (0.67) |
.250 (6.35) .600 (15.24) .0305 (0.77) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their bodies.
4. Tinned copper lead wire, AWG number 21.

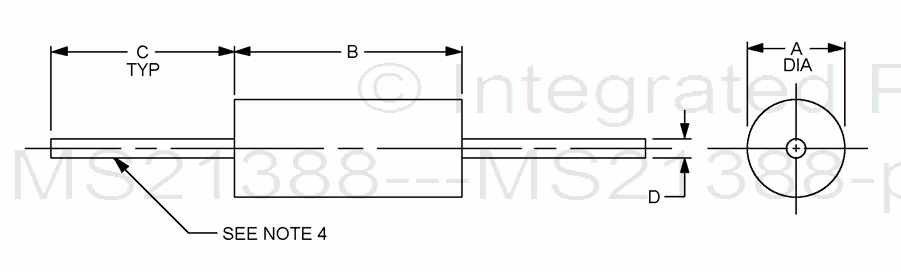

FIGURE 1. Dimensions and configuration.
