INCH-POUND
MS21426C
24 August 2007
SUPERSEDING MS21426B
3 August 1979
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, MICRO-MINIATURE, MAGNETICALLY SHIELDED,
(IRON CORE-IRON SLEEVE), TYPES LT10K518 TO LT10K554
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
Ltr |
Dimensions in inches with metric equivalents (mm) in parentheses |
|
Minimum |
Maximum |
|
A B C D |
.085 (2.16) .240 (6.10) 1.380 (35.05) .015 (0.38) |
.105 (2.67) .260 (6.60) 1.620 (41.15) .0215 (0.55) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their leads.
4. Solderable/weldable lead wire, AWG number 26.

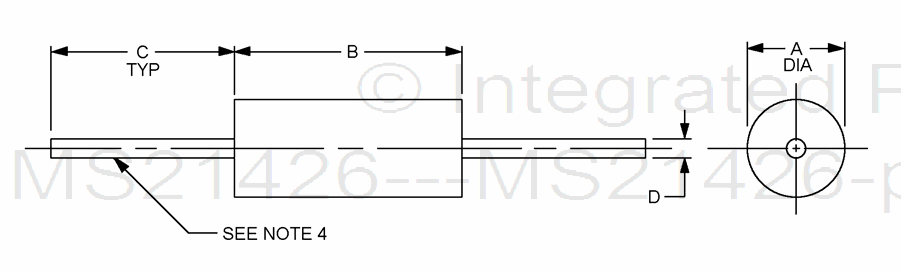

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
