INCH-POUND
MS75101C
7 September 2007
SUPERSEDING MS75101B
16 February 1995
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, SUBMINIATURE (IRON CORE), TYPES LT10K169 TO LT10K180, INCLUSIVE
Inactive for new design, after 4 September 1985.
For new design, use MIL-PRF-39010/5.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR
Dimensions in inches with metric equivalents (mm) in parentheses
Minimum Maximum
A |
.156 |
(3.96) |
.219 |
(5.56) |
B |
.406 |
(10.31) |
.469 |
(11.91) |
C |
1.250 |
(31.75) |
1.626 |
(41.30) |
D |
.023 |
(0.58) |
.027 |
(0.69) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their bodies.
4. Solderable/weldable lead wire, number 22 AWG.

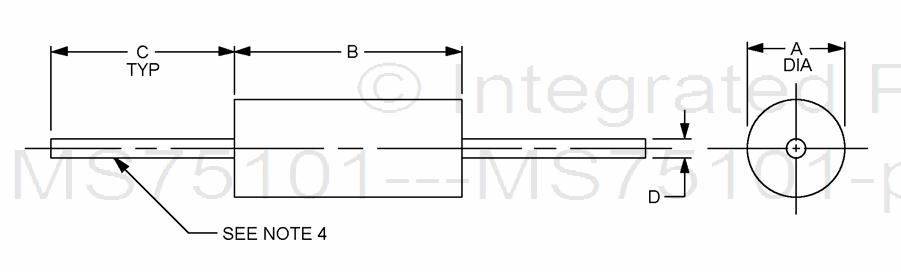

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
