INCH-POUND
MS75103A
7 September 2007
SUPERSEDING MS75103
14 March 1972
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, SUBMINIATURE (IRON CORE), TYPES LT10K181 TO LT10K190, INCLUSIVE
Inactive for new design
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR
Dimensions in inches with metric equivalents (mm) in parentheses
Minimum Maximum
A |
.250 |
(6.35) |
.313 (7.95) |
B |
.875 |
(22.23) |
1.000 (25.40) |
C |
1.250 |
(31.75) |
1.625 (41.28) |
D |
.026 |
(0.66) |
.030 (0.76) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their body.
4. Solderable/weldable lead wire, number 21 AWG.

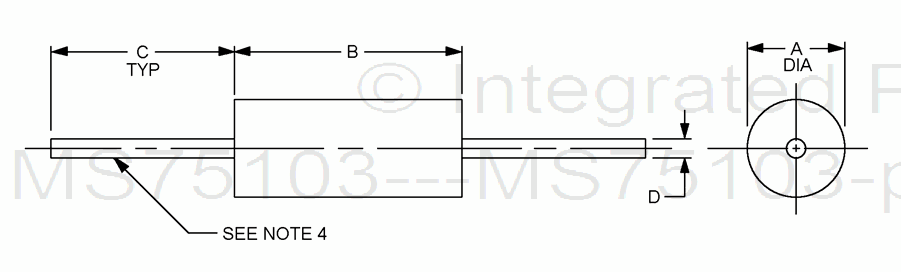

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
