INCH-POUND
MS90541B
7 September 2007
SUPERSEDING MS90541A
1 June 1973
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED SUBMINIATURE (IRON CORE),
TYPES LT10K050 TO LT10K060, INCLUSIVE
Inactive for new design.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR |
Dimensions in inches with metric equivalents (mm) in parentheses |
|
Minimum |
Maximum |
|
A B C D |
.230 (5.84) .730 (18.54) 1.250 (31.75) .030 (0.76) |
.250 (6.35) .750 (19.05) 1.625 (41.28) .034 (0.86) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their bodies.
4. Solderable/weldable lead wire, number 20 AWG, tinned solid copper wire.

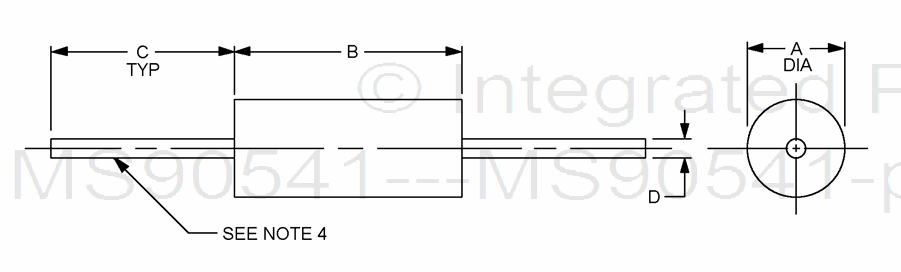

FIGURE 1. Dimensions and configuration.
