INCH-POUND
MS91189E
7 September 2007
SUPERSEDING MS91189D
31 October 1972
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED SUBMINIATURE (PHENOLIC CORE),
TYPES LT4K002 TO LT4K016, INCLUSIVE
Inactive for new design.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR |
Dimensions in inches with metric equivalents (mm) in parentheses |
|
Minimum |
Maximum |
|
A B C D |
.250 (6.35) .875 (22.23) 1.250 (31.75) .026 (0.66) |
.313 (7.95) 1.000 (25.40) 1.625 (41.28) .030 (0.76) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their bodies.
4. Solderable/weldable lead wire, number 21 AWG.

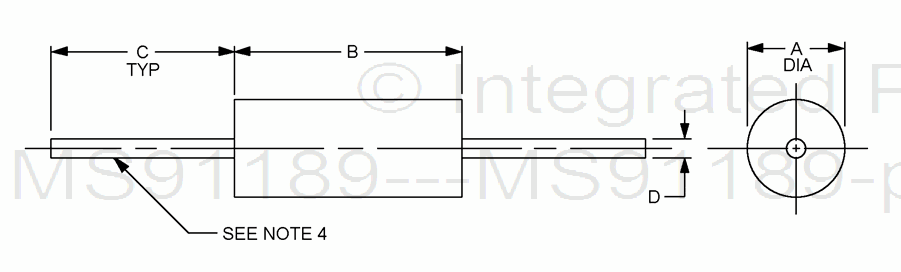

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
