INCH-POUND
MIL-PRF-27/146D
28 September 2012
SUPERSEDING
MIL-PRF-27/146C
29 September 2009
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS AND INDUCTORS
(AUDIO, POWER, AND HIGH-POWER PULSE),
INDUCTORS, HIGH Q
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the transformer described herein
shall consist of this specification sheet and MIL-PRF-27.
1
"X"
"X" nAdc
"X" ohms
.360 MAX.
"X" Q
DIA.
WV: 175V pk.
2
ALTITUDE 75.000 FT. MAX.
.200
(SEE TABLE I FOR VALUE OF "X")
± .010
CIRCUIT DIAGRAM AND MARKING
.025 DIA LEAD
(2 REQ'D)
Inches
mm
.010
0.25
1.250
.025
0.64
± .125
.125
3.18
.250
6.35
.360
9.14
1.250
31.75
.250
MAX.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.

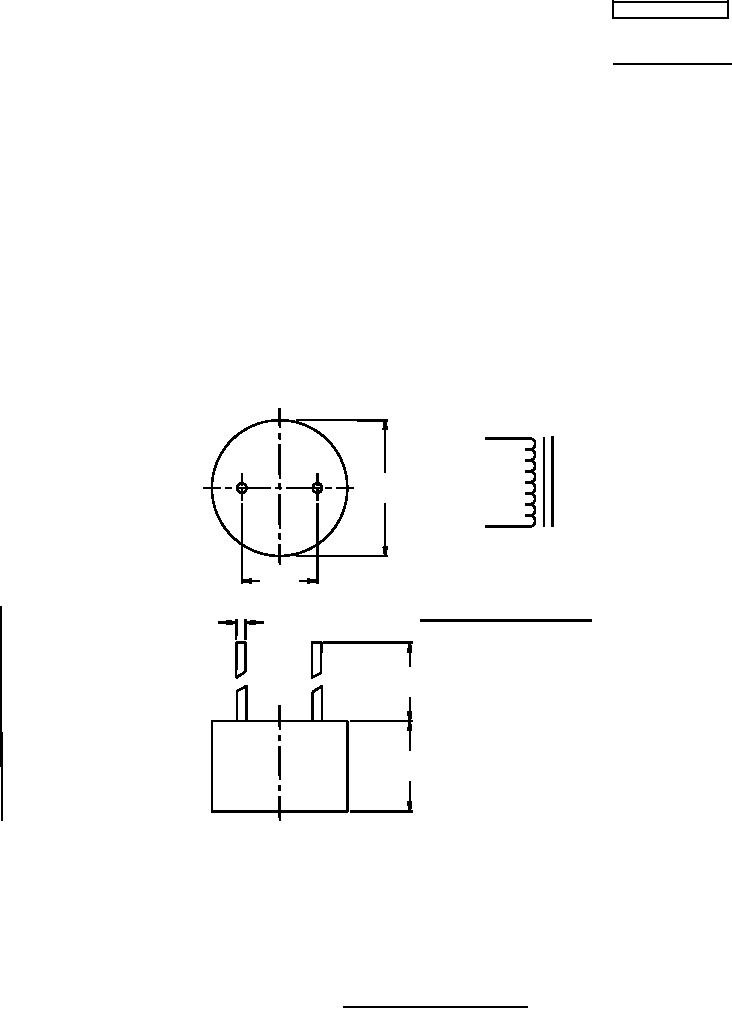

FIGURE 1. Dimensions and configurations
AMSC N/A
FSC 5950
