INCH-POUND
MIL-PRF-27/165E
1 October 2010
SUPERSEDING
MIL-PRF-27/165D
14 February 1995
PERFORMANCE SPECIFICATION SHEET
TRANSFORMER AUDIO FREQUENCY
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-27.
Inches
mm
.005
0.13
.015
0.38
.031
0.79
.040
1.02
.125
3.18
.200
5.08
.281
7.14
.400
10.16
.600
15.24
.719
18.26
.750
19.05
1.000
25.40
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side(s) and top of case, or both.
4. Unless otherwise specified, the tolerance shall be ±.010 (0.25 mm).

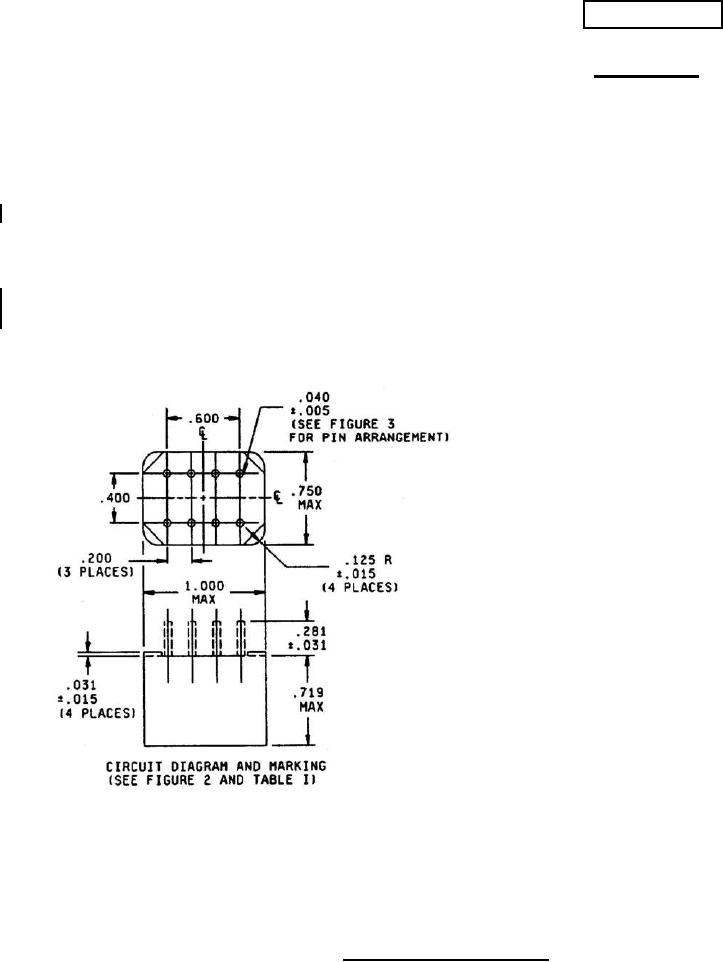

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5950
