MIL-PRF-27/165E

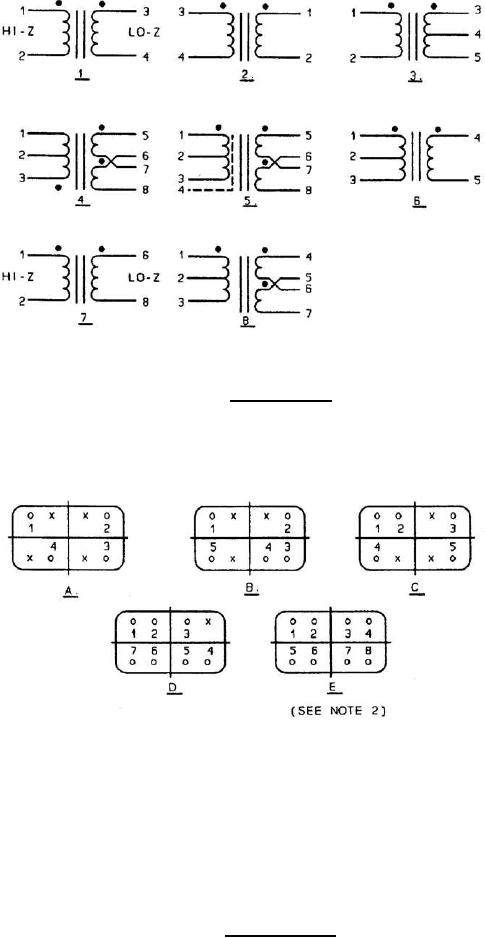

NOTE: Dots indicate the same polarity on terminals.
FIGURE 2. Circuit diagram.
NOTES
1. Pins not used are removed. These are indicated by "X".
2. Pin numbers not shown in the circuit diagram (see figure 2) indicates that those pins will be
missing.
FIGURE 3. Pin arrangement.
2
