INCH-POUND
MIL-PRF-27/166B
18 July 2008
SUPERSEDING
MIL-PRF-27/166A
22 January 1985
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, AUDIO FREQUENCY
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-27.
Inches
mm
.016
0.41
.019
0.48
.031
0.79
.120
3.05
.166
4.22
.219
5.56
.550
13.97
.953
24.21
1.125
28.58
1.172
29.77
1.219
30.96
1.422
36.12
NOTES:
1.438
36.53
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the side of the case.
4. Primary and secondary electrical values shall be marked as specified in table I, as applicable.

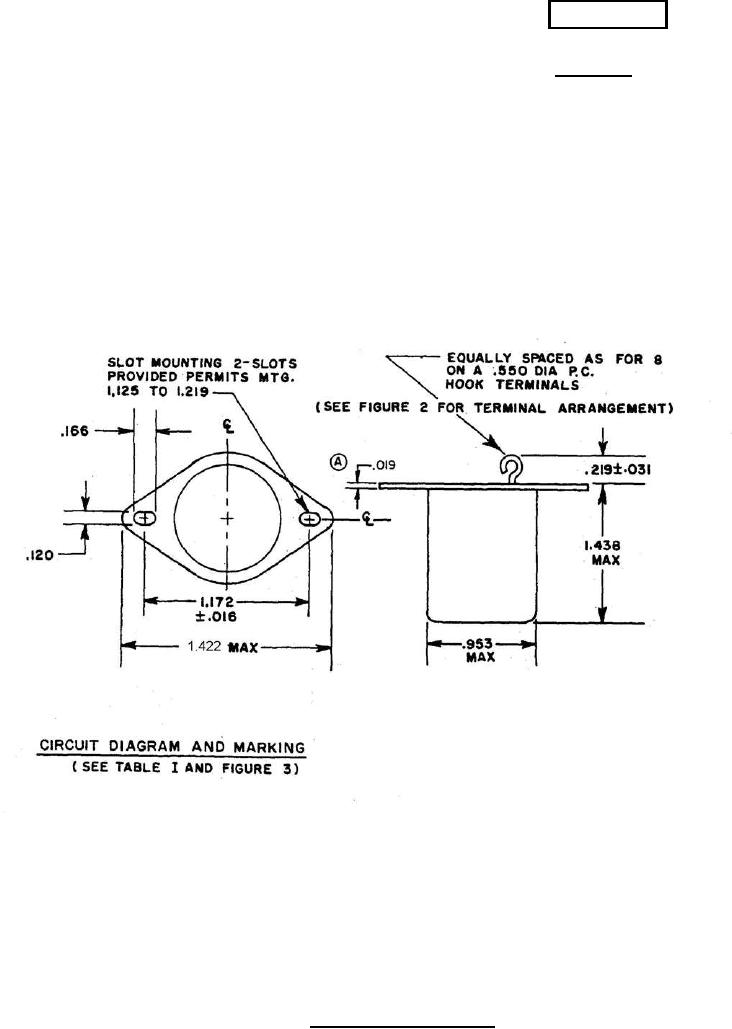

FIGURE 1. Dimensions and configurations.
