INCH-POUND
MIL-PRF-27/2G
13 July 2012
SUPERSEDING
MIL-PRF-27/2F
23 July 1990
MILITARY SPECIFICATION SHEET
TRANSFORMERS, AUDIO FREQUENCY
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall
consist of this document and the latest issue of specification MIL-PRF-27.
Part number M27/1-01 is inactive for new design
after 4 April 1985. For new design use M27/2-02.
Inches
mm
.002
0.05
.005
0.13
.010
0.25
.020
0.51
.025
0.64
.041
1.04
Working voltage = 50 V rm
.157
3.99
Freq. range: 250 to 5,000 Hz
.490
12.45
Power level: 2 watts.
.680
17.27
.796
20.22
1.200
30.48
1.332
33.83
1.400
35.56
1.593
40.46
1.695
43.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

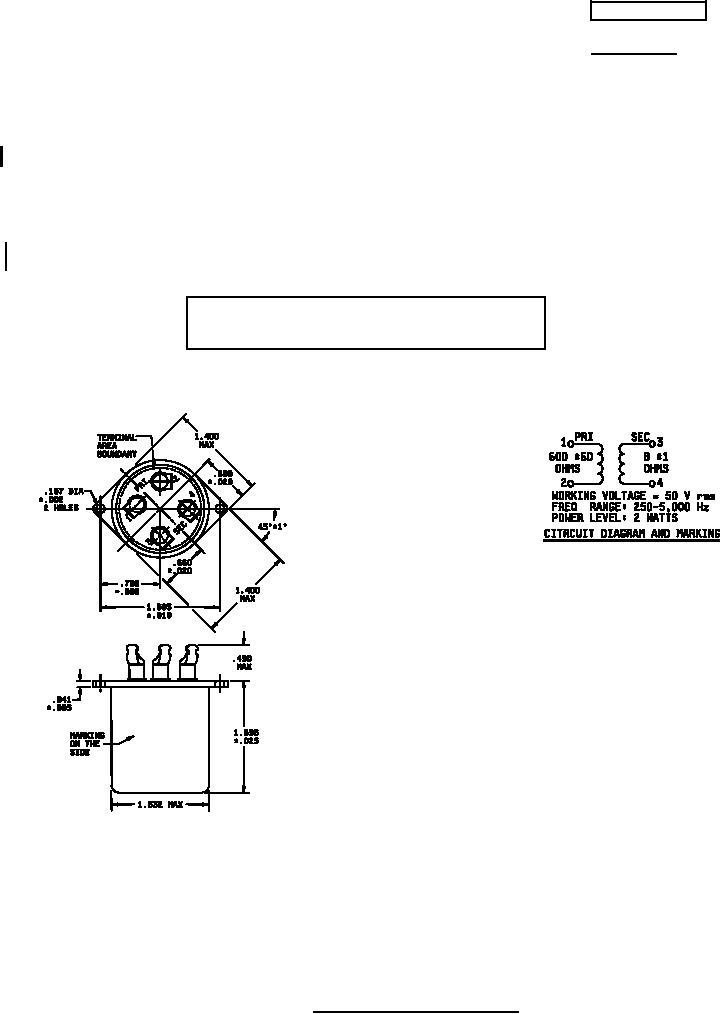

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5950
