MIL-PRF-27/316C
25 July 2008
SUPERSEDING
MIL-PRF-27/316B
19 May 2003
PERFORMANCE SPECIFICATION SHEET
TRANSFORMERS, POWER, 30 VOLT-AMPERES, 60 HERTZ
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this
document and the latest issue of specification MIL-PRF-27.
Inches
mm
.005
0.13
.016
0.41
.031
0.79
.062
1.57
.070
1.78
.375
9.53
.875
22.23
1.50
38.1
2.00
50.8
2.13
54.1
2.69
68.3
3.50
88.9
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking shall be on the sides of the case.
4. Unless otherwise specified, tolerance shall be ±.063 (1.60 mm).
5. Electrical values shall be marked as specified in table I, except DCR.

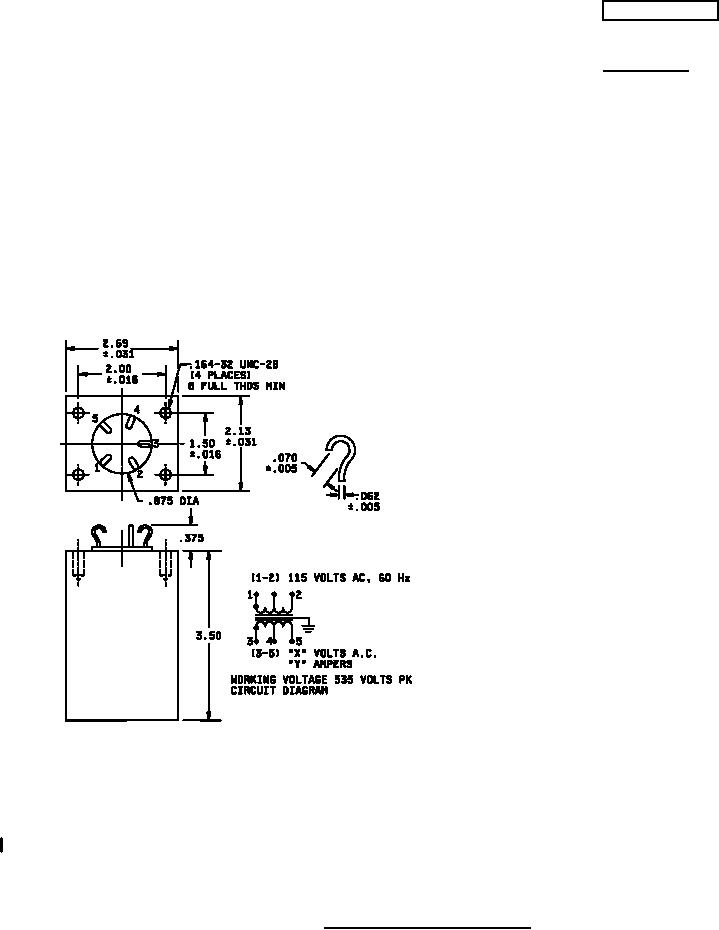

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5950
