INCH-POUND
MIL-PRF-27/96A
29 September 2009
SUPERSEDING
MIL-PRF-27/96
12 May 1976
PERFORMANCE SPECIFICATION SHEET
TRANSFORMER, AUDIO FREQUENCY, SUB-MINIATURE
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the transformer described herein
shall consist of this specification sheet and MIL-PRF-27.
BLU
PRI
SEC
GRN
.344 DIA.
MAX.
32 Ω
1,200 Ω
.469
MAX.
BLK
RED
AWG.
NO. 26
1.500
WORKING VOLTAGE: 49 V MAX.
(.016)
± .250
FREQUENCY RANGE: 300 Hz TO 20 kHz
POWER LEVEL: 100 mW
BLU-RED - 1,200 OHMS
BLK-GRN - 3.2 OHMS
CIRCUIT DIAGRAM
Inches
mm
.344
8.74
.469
11.91
1.500
38.10
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The number of terminals shall be as shown in circuit diagram.
4. For vibration and shock test the specimen shall be rigidly mounted on a printed circuit board.

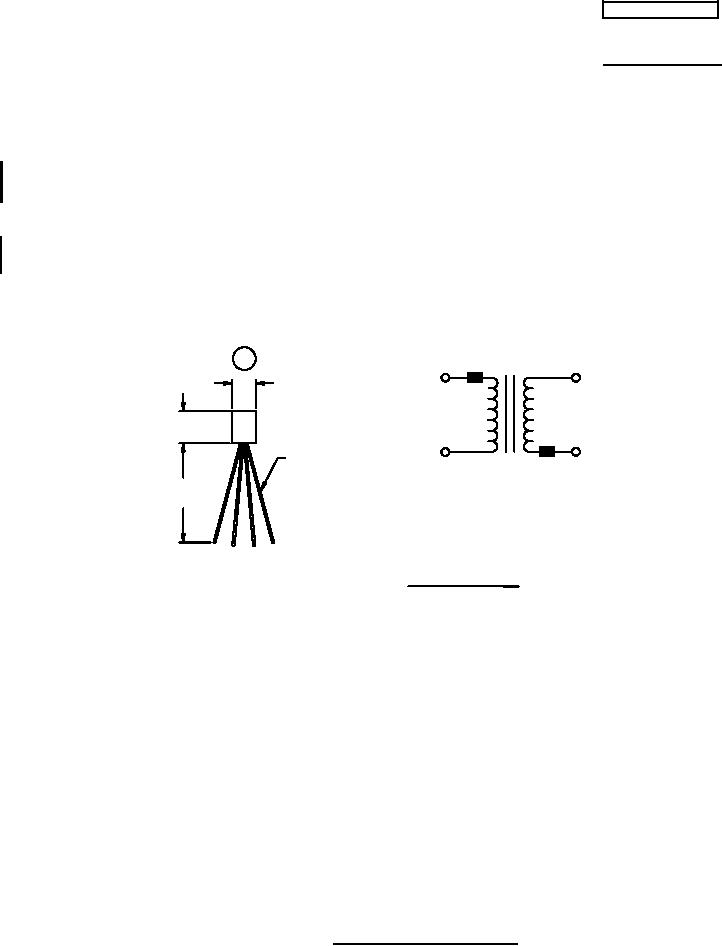

FIGURE 1. Dimensions and configurations
AMSC N/A
FSC 5950
