MIL-PRF-83446/14B

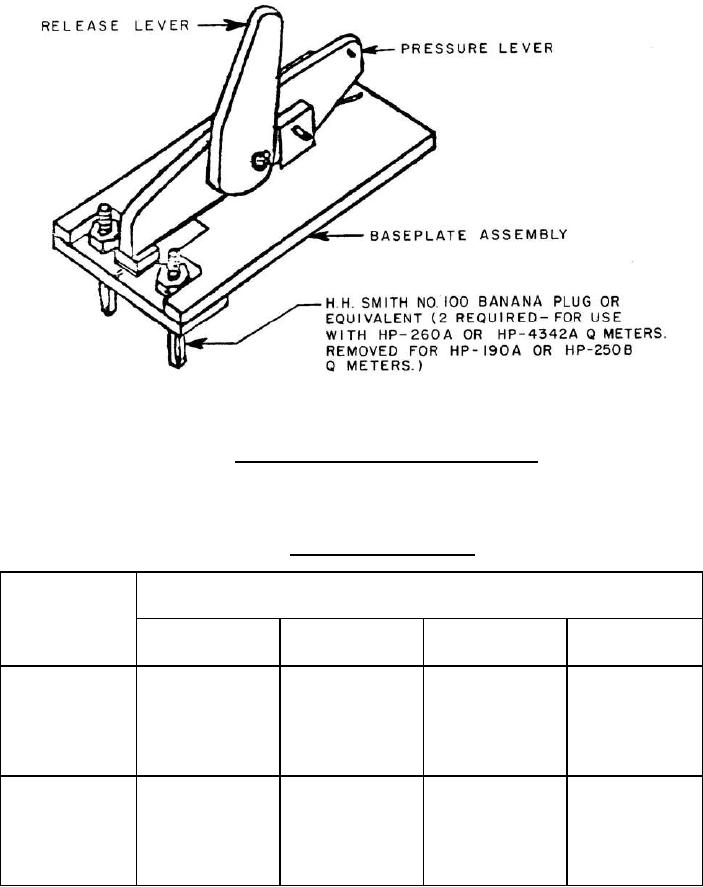

FIGURE 2. Typical chip coil test fixture (TF-405, or equivalent).
TABLE II. Electrical characteristics (final).
Inspection
Allowable variation from initial measurements
group
Inductance
DC resistance
Self-resonant
Q
frequency
(Percent)
(Percent)
(Percent)
Qualification
inspection
±5
±(3% +.001 ohm)
Group II
-8
-10
±5
±(2% +.001 ohm)
Group IV
-10
-10
±2
Group V
---
-10
---
Conformance
inspection group C
±5
±(3% +.001 ohm)
Subgroup II
-8
-10
±5
±(3% +.001 ohm)
-8
Subgroup IV
-10
5
