INCH - POUND
MIL-PRF-83446/4D
25 August 2006
SUPERSEDING
MIL-C-83446/4C
7 February 1984
PERFORMANCE SPECIFICATION SHEET
COILS, RADIO FREQUENCY, CHIP, FIXED
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-83446.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Shape of curved portion optional provided dimensions A, B, and C are met.

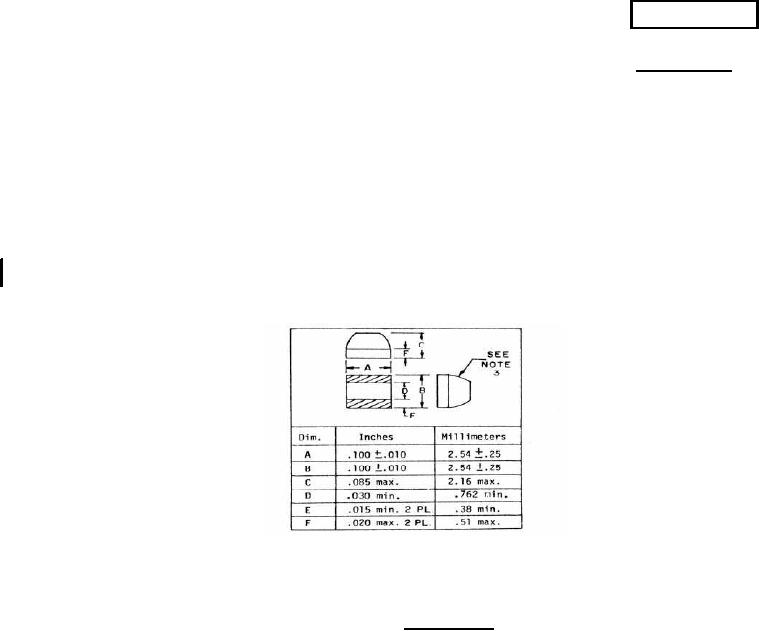

FIGURE 1. Fixed, chip coil.
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Weight: 0.5 gram maximum.
Operating temperature range: -55°C to +125°C.
Temperature rise (at 90°C): 35°C.
Maximum operating temperature: 125°C.
Altitude: 70,000 feet.
Dielectric withstanding voltage: Method 301 of MIL-STD-202, test voltage 200 volts rms.
Barometric pressure: Method 105, test condition C, MIL-STD-202, (70,000 feet), test voltage 80 volts rms.
Electrical characteristics (initial): See table I. Test fixture shall be as shown on figure 2.
AMSC N/A
FSC 5950
