MIL-PRF-83446/9E
Inches
mm
.025
0.64
NOTES:
.035
0.89
1. Dimensions are in inches.
.070
1.78
2. Metric equivalents are given for general information only.

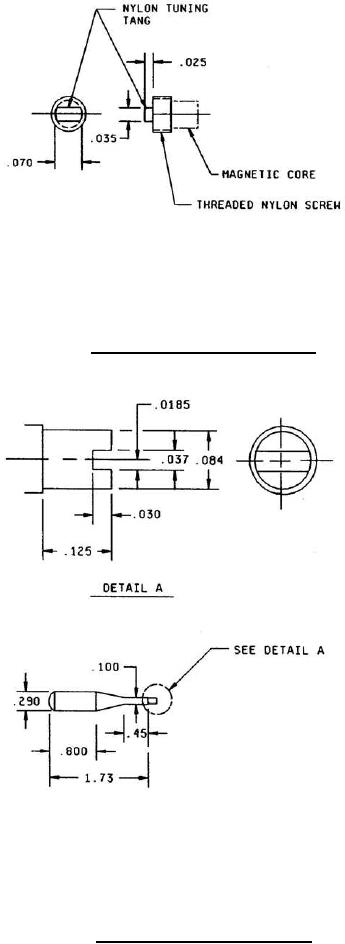

FIGURE 2. Core and adjustment screw assembly.
Inches
mm
.0185
0.470
.030
0.76
.037
0.94
.084
2.13
.100
2.54
.125
3.18
.290
7.37
.45
11.4
.800
20.32
NOTES:
1.73
43.94
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Material: Plastic.
FIGURE 3. Tuning, tool (TT-2271 or equivalent).
6
