MIL-PRF-83446/9E
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

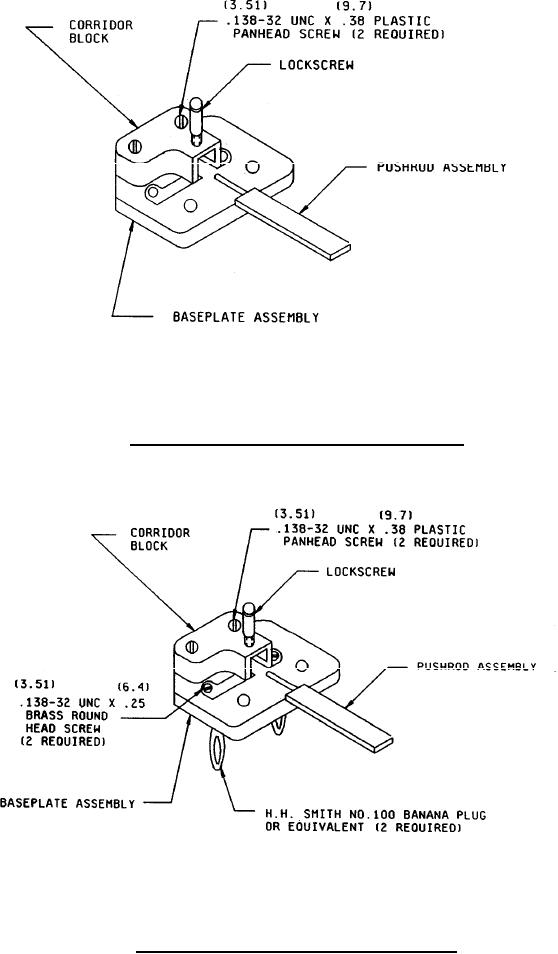

FIGURE 4. Typical chip coil test fixture (TF-250RX-3, or equivalent).
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.
FIGURE 5. Typical chip coil test fixture TF-260Q-3, or equivalent).
