INCH-POUND
MS75089D
7 September 2007
SUPERSEDING MS75089C
3 March 1999
MILITARY SPECIFICATION SHEET
COILS, RADIO FREQUENCY, MOLDED, FIXED, MICRO-MINIATURE, MAGNETICALLY SHIELDED, (FERRITE CORE - FERRITE SLEEVE), TYPES LT10K217 TO LT10K263, INCLUSIVE
Inactive for new design, after 4 September 1985.
For new design, use MIL-PRF-39010/3.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification and MIL-PRF-15305.
LTR |
Dash numbers -01 through -47 |
Dash numbers -48 through -94 |
||
Dimensions in inches with metric Equivalents (mm) in parentheses |
Dimensions in inches with metric Equivalents (mm) in parentheses |
|||
Minimum |
Maximum |
Minimum |
Maximum |
|
A B C D |
.152 (3.86) .390 (9.91) 1.250 (31.75) .023 (0.58) |
.172 (4.37) .430 (10.92) 1.626 (41.30) .027 (0.69) |
.152 (3.86) .390 (9.91) 1.250 (31.75) .023 (0.58) |
.197 (5.00) .447 (11.35) 1.626 (41.30) .027 (0.69) |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. These coils are intended to be supported by their bodies.
4. Solderable/weldable lead wire, number 22 AWG.

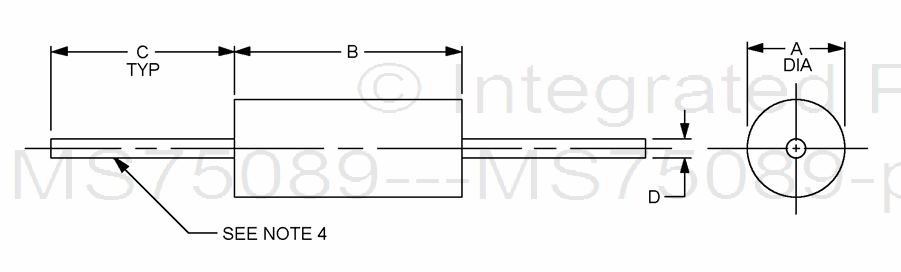

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
