MIL-DTL-28778 Transformer, Power, Stepup, 3 PhaseThis specification covers the requirements for a high power transformer, using single unit, 3- legged core construction, supplying rectified loads to be used in Navy shore transmitters. These units are sealed, metal encased with either separately fabricated headers and terminals or both.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22


NOTE:
1.
Terminations for thermostatic switch, oil level switch and
over pressure switch to be on this surface

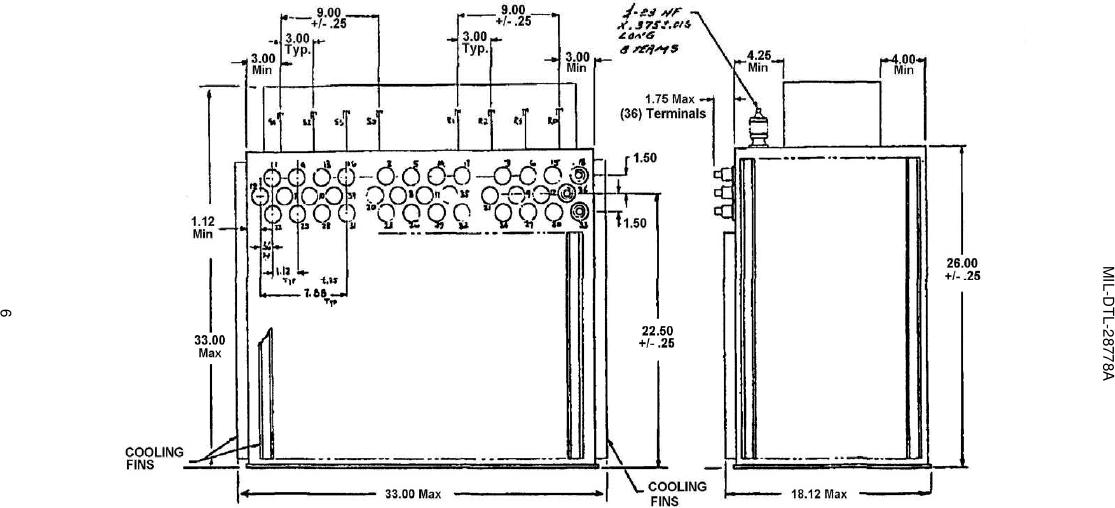

Figure 1. Outline power transformer
