INCH - POUND
MIL-PRF-83446/12A
25 August 2006
SUPERSEDING
MIL-PRF-83446/12
16 December 1980
PERFORMANCE SPECIFICATION SHEET
COILS, RADIO FREQUENCY, CHIP, FIXED
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the products described
herein shall consist of this specification and MIL-PRF-83446.
Ltr
Inches
mm
A
.180 Max
4.57 Max
B
.140 Max
3.56 Max
.095 Max (-50 thru -61)
2.41 Max
C
.065 Max (-1 thru -49)
1.65 Max
D
.025 ±.005
0.64 ±.13
E
.057 ±.002
1.45 ±.05
F
.045 ±.005
1.14 ±.13
G
.005 Min
0.13 Min
H
.020 Min
0.51 Min
I
.140 Max
3.56 Max
J
.102 ±.003
2.59 ±.08
K
.033 ±.002
0.84 ±.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

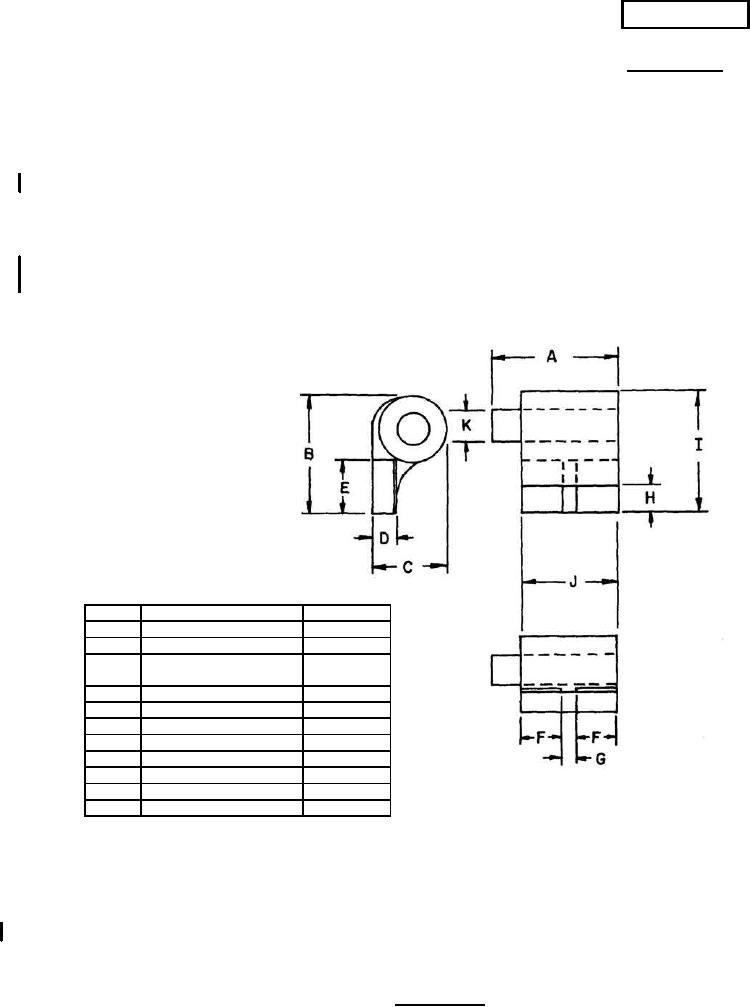

FIGURE 1. Fixed, chip coil.
AMSC N/A
FSC 5950
