INCH-POUND
MIL-T-27/223C
4 May 2012
SUPERSEDING MIL-T-27/2238
30 June 1992
MILITARY SPECIFICATION SHEET
TRANSFORMERS, POWER, STEP-DOWN
Inactive for new design after 30 June 1992.
This specification is approved for use by all Depart- ments and Agencies of the Department of Defense.
The complete requirements for procuring the transformer described herein shall consist of this document and the latest issue of specification MIL-PRF-27.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The number of terminals and the configuration of the terminals shall be as shown on figure 2.
4. For circuit diagram and marking, see figure 3.
5. Marking shall be on side of case.

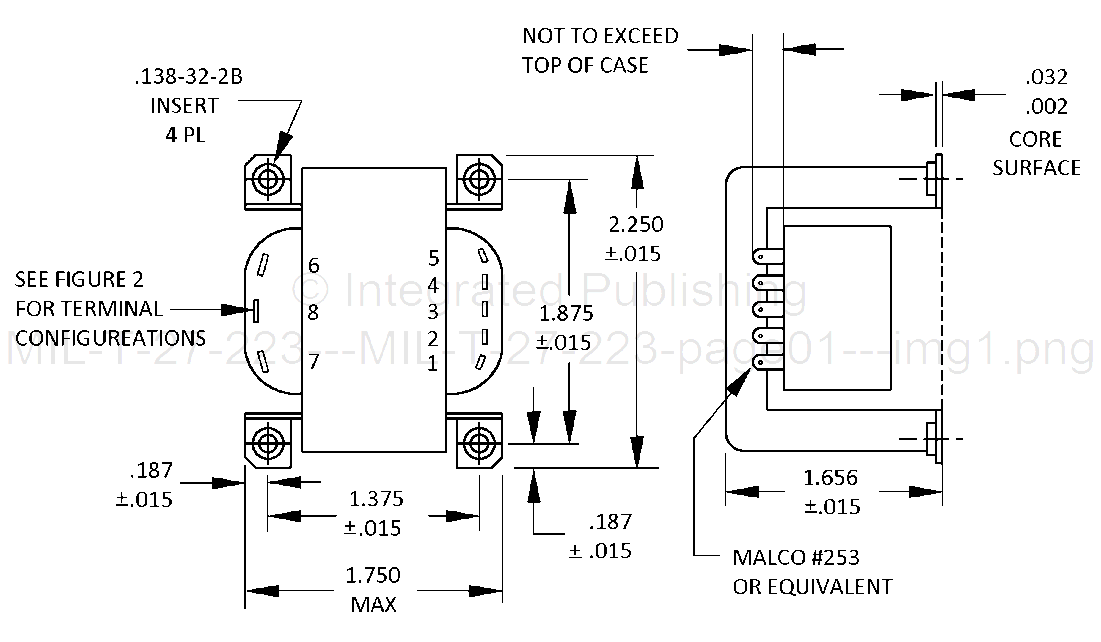

FIGURE 1. Dimensions and configuration.
AMSC N/A FSC 5950
