MIL-T-27/223C
REQUIREMENTS: (When numbers in parentheses, i.e., (1-2) are used, they indicate the winding and the extreme terminals of the windings.)
Electrical ratings: See table I.

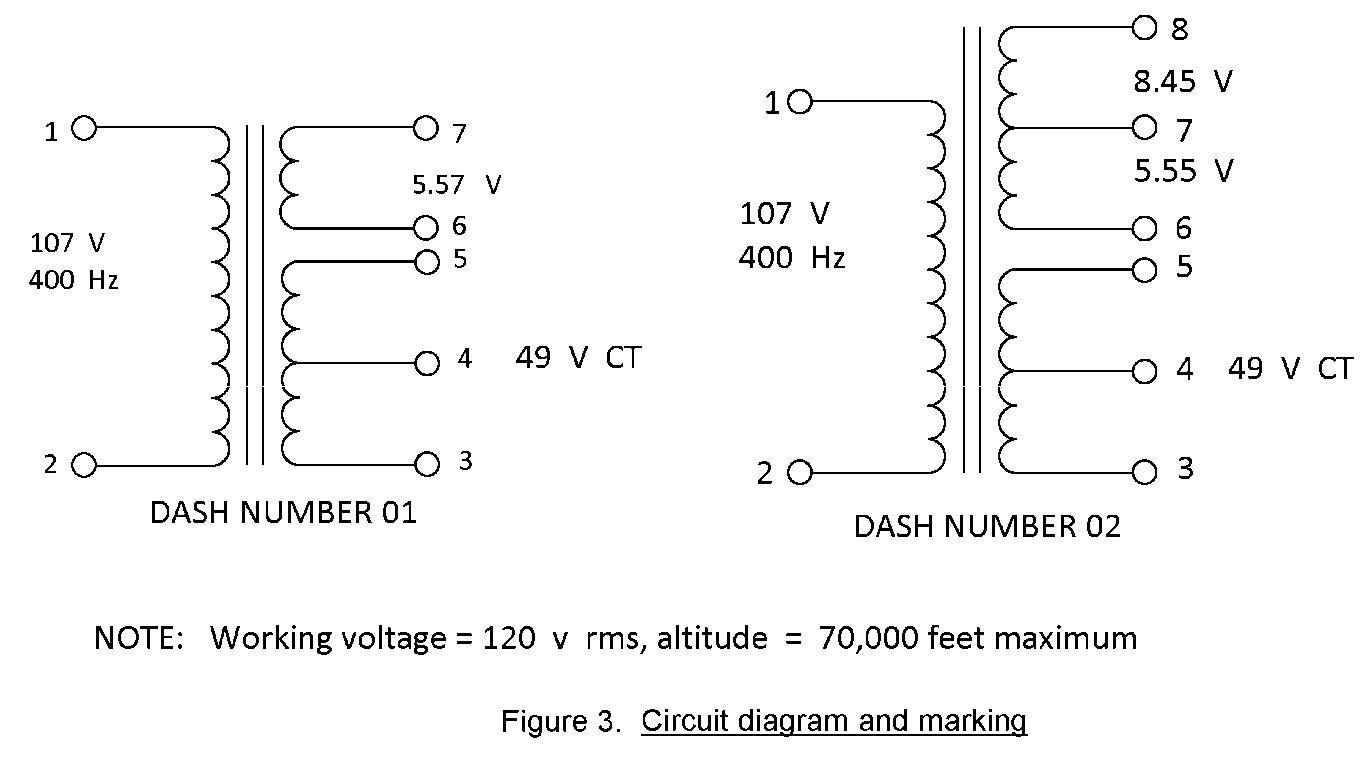

Primary voltage (1-2): 107 V rms, 400 Hz ±20. Working voltage: 120 V rms.
Design and construction:
Dimensions and configuration: See figure 1. Duty cycle: Continuous.
Case: Encapsulated.
Terminals: Solder terminal Malco no. 253 or equivalent. Terminal height: Not to exceed top of case.
Weight: 11.8 ounces maximum. Altitude: 70,000 feet maximum.
Operating temperature range: -55°C to +170°C.
Terminal strength: MIL-STD-202, method 211, test condition A, 5 pounds.
3
