MIL-PRF-15305 Coils, Electrical, Fixed And Variable, Radio Frequency General Specification ForThis specification covers the general requirements for radio frequency coils, fixed and variable, for use as simple inductive elements in radio frequency circuits. Procurement of coils of a specific design will require additional data in the form of complementary Service documents, giving detail electrical and mechanical requirements, tolerances, and applicable additions and exceptions to the general requirements and tests specified herein \(see 3.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16

MIL-PRF-15305F

INCHES

.250

6.35

.563

14.30

.625

15.88

.875

22.22

1.000

25.40

1.938

49.23

3.000

76.20

NOTES:

1. Dimensions are in inches.

2. Letters in blocks to be marked on fixture.

3. Unless otherwise specified, tolerance is �.005 (.13 mm).

4. Metric equivalents are given for general information only and based on 1.00 inch = 25.4 mm.

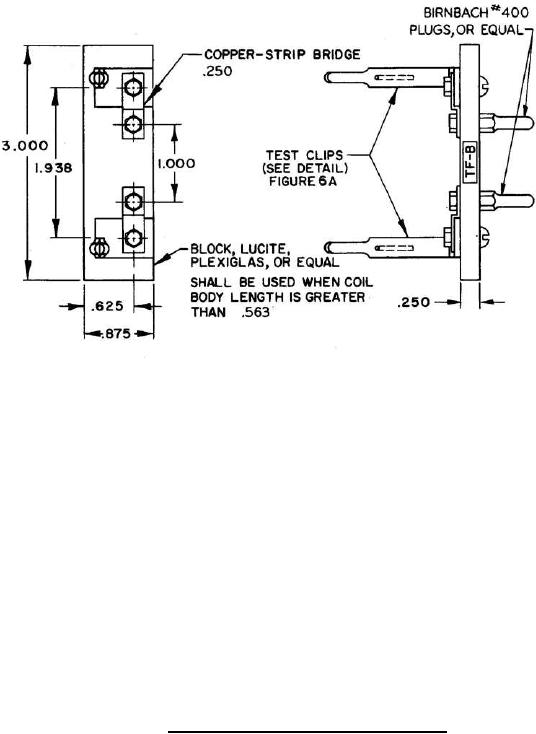

FIGURE 4. Test fixture TF-B (for axial leads) or equivalent.
