MIL-STD-981C APPENDIX B

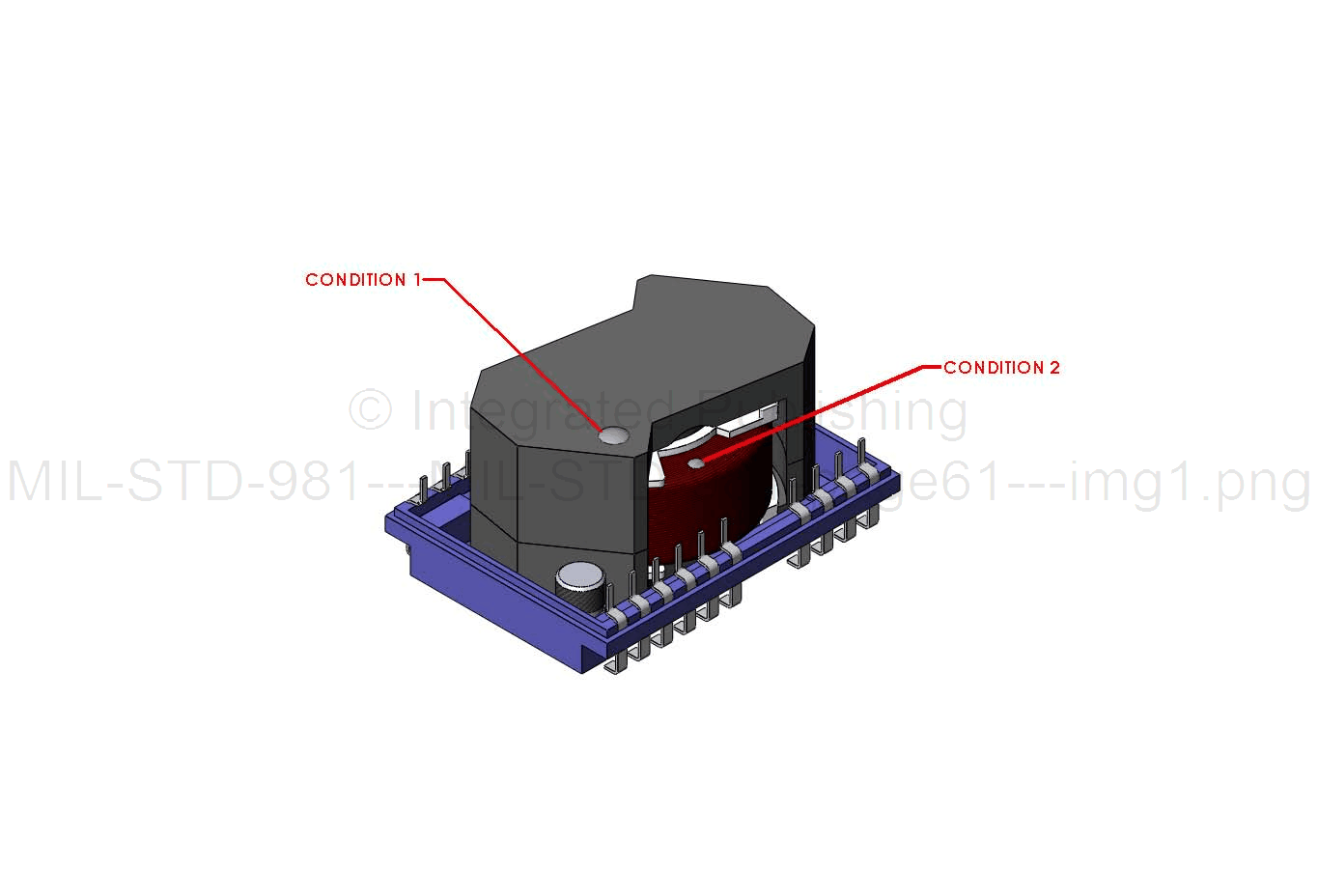

Note: This drawing depicts a transformer that is coated with a soft (RTV) material, and is then encapsulated with a hard (Shore D measurable) material.
This criteria applies only to particles that are verified to be entrapped within the soft material.
Condition 1: Acceptable - Particle is entrapped within soft material, and is located greater than .125" from any conductor.
Condition 2: Rejectable - Particle is entrapped within soft material, and is located less than .125" from any conductor.
FIGURE B-3 (5 of 5). Acceptable/rejectable extraneous material (see B.3.1.1.2.1).
57
